CNC Fully Automatic H-Beam Laser Cutting Machine 3D 5-Axis Fiber Laser H-Beam Cutting Machine for Cutting Large Steel Carbon Steel Stainless Steel

Product Description

Product Description

YT-HB1200 3-dimensional 5-axis fiber laser cutting machine can meet the user's H-beam steel cutting processing.

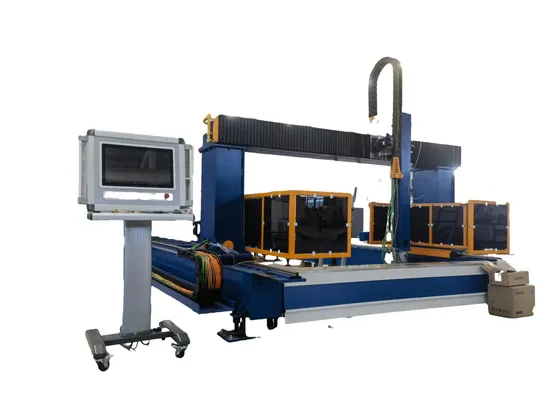

YT-HB1200 3-dimensional 5-axis fiber laser steel cutting machine is composed of beam, base beam, cutting table (self-made by the demander), laser, chiller, cutting and other parts.
YT-HB1200 3-dimensional 5-axis fiber laser cutting machine has the following advantages:
1-Equipped with Germany BECKHOFF three-dimensional five-axis CNC system, RTCP function with 20 years of application experience;
2- Durable, highly rigid, integrated ACU rotary swing mechanism;
3-H steel online measurement, compensation, cutting, opening, marking, cutting, beveling integrated software functions, to meet the heavy H steel opening, marking, Marking, cutting, miter cutting, locking, beveling and other processes, multiple processes into one, improve production efficiency and accuracy;
4-U axis follow-up scheme, flexible, convenient and fast;
5- Support gantry/cantilever structure, no chuck, simplified structure, to ensure long-term accuracy;
6- Support double station cutting, single station is 12-meter-long for H steel
Technical Parameters

	Items	QTY.	Supplier/Brand	Notes
1	Section steel cutting machine bed HB1200	1	FARIN	Professional design Heavy duty H-shaped steel cut bed
2	Three-dimensional five-axis steel cutting laser system	1	Germany BECKHOFF	GERMANY
3	Industrial PC	1	JIUYAN	CHINA
4	Optical fiber laser generator	1	RAYCUS	CHINA
5	Three dimensional five axis fiber cutting head	1	Cutting head	CHINA
6	ACU shaft swing head (arm) and accessories	1	WisCut	CHINA
7	Cooling system	1	Hanli HL-20000	CHINA
16	steel range finder	1	Panasonic	JAPAN

Machine specifications

Items		Specification	Unit
Effective processing range of H beam steel	L	24000	mm
	Web width	1200	mm
	Height of wing	600	mm
Max thickness	Mild steel	45	mm
	Stainless steel	40	mm
Mass production	Mild steel	40	mm
	Stainless steel	35	mm
Bevel cutting Angle		≤45°
X/Y axis positioning accuracy		±0.05	mm/m
X/Y axis repeated positioning accuracy		±0.03	mm
X/Y axis maximum linkage speed		60	m/min
Maximum acceleration on the X/Y axis		0.8	G
Overall dimensions (approx.)	L	29500	mm
	W	4300	mm
	H	3300	mm
Phase number		3	Phase
Rated supply voltage		380	V
frequency		50	Hz
Total power supply protection class		IP54

Detailed Photos
Company Profile
Farin CNC Machine is a integrating stock group company in researching and developing, manufacturing and trading at Metal processing industry.
Our products including CNC metal drilling and milling machine, Anlge steel making machine, fiber laser cutting machine,laser robot, ultra-high power 10,000-watt laser cutting machine, plate and tube integrated laser cutting machine, automatic loading and unloading laser cutting machine, hand-held laser welding machine and other equipment. They are mainly used for processing angle steel, metal plates, H-beam, channel steel, box steel, round steel, flange plates and so on in power towers, transmission towers, telecommunications tower, steel structures, central air-conditioners, automobiles, household appliances, petrochemicals and construction industry.
With the developing of the brand efficiency in the international market, Farin CNC Machine increase the investment constantly into the R&D department, in ensuring the stably of the existing products, we constantly absorb quintessence experience of the industry, so that ensure our technology always in the advanced position. Meanwhile, Farin CNC Machine constantly strengthen internal management, so as to realize much more benefit and make great development from the advanced manage method.
Therefore, our products has been exported to more than 100 countries and districts, such as Southeast Asia, North America, South America, Africa and Middle East. And get high appreciated from all over the world.

Packaging & Shipping

The machine will be packed in wooden boxes or vacuum packed. The packaging of the goods should be moisture-proof, rust-proof, moisture-proof, corrosion-proof and shock-proof, and should be suitable for sea transportation/multiple transportation.
After Sales Service
1. Warranty. --Farin Laser provides a 2-year free warranty and provides customers with timely solutions. 2. Follow up. --Farin Laser will regularly call or visit customers to perform equipment maintenance and archiving. 3. Online services. -Farin Laser will respond to any questions from customers within 1 hour during working hours, 4. Overseas services. --Farin Laser can provide overseas machinery installation, training, maintenance and other services.
Why choose us?
1: About FARIN laser:
High quality OEM factory provides 2 years warranty
Customized R&D capabilities,High-performance manufacturing capabilities, professional certification and recognition
2: Technology research and development:
Environmental advantages: dust-free, quiet, environmentally friendly
3: Customer service advantages: 7*24H quick response service. 24 hours online service
4: Free training:
User-friendly English manual and video CD for easy machine use and maintenance.
5: Warranty: 2 years for machine bed, 2 years for spare parts, and 1 year for laser head.

FAQ:
1 Q: Are you a factory or a trading company?
Answer: We are a factory that manufactures fiber laser cutting machines and CNC plasma cutting machines with 10 years of experience in the CNC industry.
2 Q: Do you have after-sales support?
A: Yes, we are happy to provide advice. We provide lifetime maintenance services for our machines. If you have any doubts, please contact us. We will respond within 1 hour.
3Q:1 I'm not sure if this machine is suitable for my job?
A: No need to worry, just tell me your cutting material, maximum working area and cutting thickness, then I will recommend you the most suitable machine and model.
4Q: What should I do if there is a problem with the machine?
A: If you encounter such problems, we provide online services and you can contact our sales. In addition, we also provide engineer installation services repair services. We will try our best to solve your problem.

---
