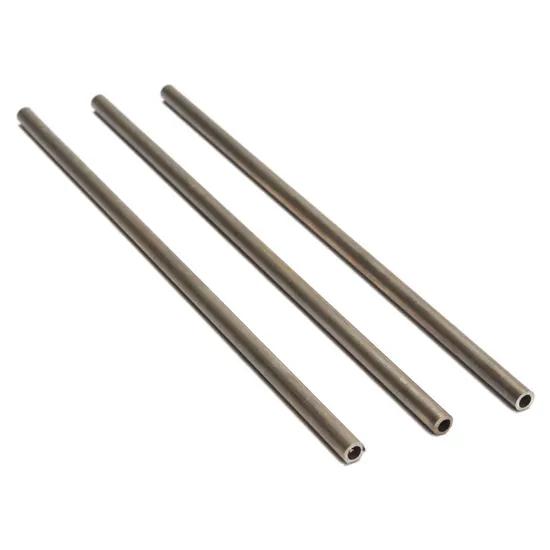

3 Inch Gr. 1/Gr. 5/Gr. 23 Round Seamless Titanium Tube Price Per Foot

US$30.00
500-4,999 kg
US$28.00
5,000-9,999 kg
US$26.00
10,000+ kg

Basic Info.

Model NO.
GR. 1/GR. 5/GR. 23
Technique
Seamless,Hot Extruded,Welded,Cold Rolled
Grade
GR7
Shape
Oval, Round, Square, Rectangule, Capillary Pipe
Outside Diameter
3-210mm
Thickness
0.2-30mm
Length
up to 15 M
Material Grade
Gr1,Gr2,Gr3,Gr5,Gr7,Gr9.Gr11.Gr12
Standard
ASTM B338,ASTM B337, ASTM B381,ASTM B861,ASTM B862
Surface
Acid Surface or Polishing
Stock Od
1/2", 1", 2.5", 3.0",3.5",4.0",5"
Transport Package
Wooden Box
Trademark
ZYTC
Origin
China
HS Code
8108904010
Production Capacity
500 Tons/Month

Product Description


Grade 7 is mechanically and physically equivalent to Grade 2, except with the addition of the interstitial element palladium, making
it an alloy. Grade 7 possesses excellent weldability and fabricality, and is the most corrosion resistance of all titanium alloys. In fact,
it is most resistant to corrosion in reducing acids.
Chemical Composition
Grade N C H Fe O Al V Pb Mo Ni Ti
Gr1 0.03 0.08 0.015 0.2 0.18 / / / / / Bal
Gr2 0.03 0.08 0.015 0.3 0.25 / / / / / Bal
Gr3 0.05 0.08 0.015 0.3 0.35 / / / / / Bal
Gr4 0.05 0.08 0.015 0.5 0.4 / / / / / Bal
Gr5 0.05 0.08 0.015 0.4 0.2 5.5-6.75 3.5-4.5 / / / Bal
Gr7 0.03 0.08 0.015 0.3 0.25 / / 0.12-0.25 / / Bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5-3.5 2.0-3.0 / / / Bal
Gr12 0.03 0.08 0.015 0.3 0.25 / / / 0.2-0.4 0.6-0.9 Bal

Tensile Requirements
Grade Elongation(%) Tensile Strength (Min) Yield Strength (Min)
ksi Mpa ksi Mpa
Gr1 24 35 240 20 138
Gr2 20 50 345 40 275
Gr3 18 65 450 55 380
Gr4 15 80 550 70 483
Gr5 10 130 895 120 828
Gr7 20 50 345 40 275
Gr9 15 90 620 70 438
Gr12 18 70 438 50 345
Applications
★Aerospace industry
★Chemical and marine applications
★Electroplating industry
★Medical industry
★Nuclear industry
★Hydro-carbon processing
★Airframe skin
★Desalination
★Chlorate manufacturing
