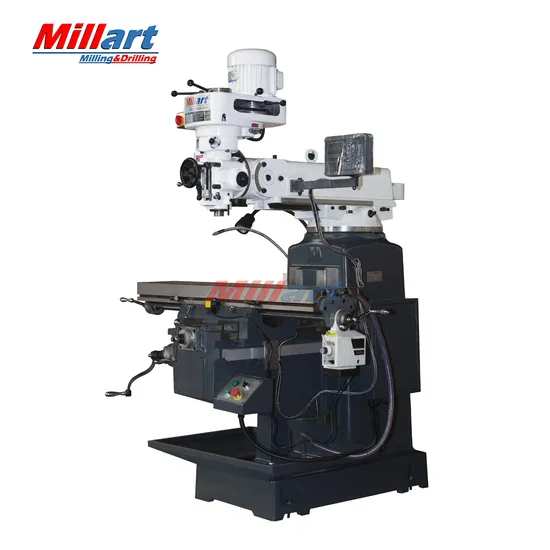

Vertical Universal Turret Millling Machine X6325 X6330 X6333

Product Description

Vertical Universal Turret Millling Machine X6325 X6330 X6333
Feature:
1.Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline
2.Rectangular guide way on Y-axis is featured a good rigidity and stability, The guide way on Radial Milling Machine saddle is lined with TF wearable material
3.High speed milling head from Taiwan
4.Harden the slide way and table surface
5.Machining the T slot by special tools, make the T slot does not extend out of the table edge, which increase the rigidity and make the machine have good appearance
6.The slide way have been precision scraped by hand. Which could keep high precision and smooth moving
7.XYZ axis screws are made in Taiwan
8.XY screw with two nut make it easy to adjust space between the screw and nut.
9.The XY screw bracket is designed in one base, have good precision and rigidity.
10. The electro system have been designed according to the CE standard
Technical parameter:

MODEL	X6325
Table size	254*1270
Long travel(mm)	820
Cross travel(mm)	380
Vertical travel(mm)	400
T-slot No.and size(mm)	3*16
Ram travel(mm)	470
Distance from spindle nose to table(mm)	0-400
Spindle hole taper	R8 (ISO40 optional)
Spindle travel(mm)	127
Spindle speed(r.p.m)	16steps: 66-4540 Variable: 60-4200(Optional)
Auto.quill feed	Three steps:0.04/0.08/0.15mm/r
Spindle motor	3HP / 5HP (Optional)
Head swivel	90°
Head tilting	45°
Dimension of package	1516*1550*2080
Weight(kgs)	1400

Standard accessories:

Draw bar

Working lamp

Lubricating

Splash guard

Tools and box

Optional accessories:

X axis auto power feed

Y axis auto power feed

Z axis auto power feed

Machine vice 160mm

3-Axis Digital readout

Air draw bar

58 pcs Clamping kits

Slotting head

Spindle protection

Variable spindle speed

5 HP Main motor

Universal Dividing Head F11-160A

Rotary table TSL250

Cooling system

Oil tray

---
