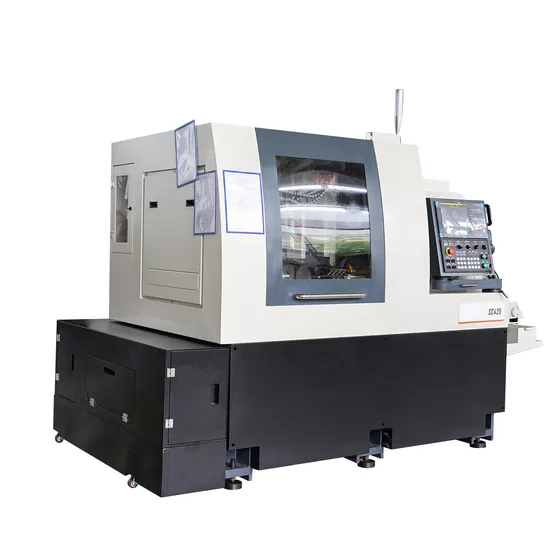

High Precision Swiss CNC Lathe Machine with Dual Spindle

Product Description

Product Description
Discover the incredible adaptability and precision of our Swiss-style lathe, famously recognized as the CNC automatic lathe. This engineering masterpiece in precision processing machinery offers an extensive range of functions such as tapping, milling, drilling, and turning, all executed with unmatched accuracy. Outfitted with groundbreaking dual spindles and an innovative double Y-axis, this machine excels in simultaneous operations, dramatically cutting down processing time. Its robust performance is especially evident in the batch production of intricate, non-standard components, particularly those requiring specialized shaping solutions like precision hardware and shafts.
Product Parameters

Items		SX325
Mechanic	System	FANUC 0i TF-PLUS	SYNTEC 220TB
	Max.RPM	Main8,000min-1/Sub8,000min-1	Main6,000min-1/Sub8,000min-1
	Max.Turning Diameter	φ32mm
	Main Spindle Stroke	280mm
	Rapid traverse speed	32m/min(X1:24m/min)	24m/min
Tools	O.D Tools	6X [16×16]
	I.N Tools	5X [φ20-ER16]
	Cross Driven Tools(integration)	4X [ER16]
	Back end tools(fixed)	4X [ER16]
Motors	Main	5.5/7.5KW	5.9KW
	Sub	1.5/2.2KW	3.9KW
	Cross	0.55/1.1KW	1KW
	Drive	0.75KW	1KW
	Coolant	0.9KW
Others	Coolant tank capacity	200L
	Lubrication tank capacity	1.8L
	Central Height	1,000mm
	Weight	3,800Kg
	The size (L×W×H)	2581×1563×1791mm
NC NC Control	/Controllable Axes	7axis/4axis
	LCD	LCD 10.4"
	System standard parameters	Standard
	Rigid tapping	Standard
	Hand wheel	Standard
	/ Synchronous/hybrid control	Standard
	Helical interpolation	Standard

Items
Standard units	Hand wheel	/C+ Main/Sub axis C + brake
	Floodlight	The product output device
	Transformer	Centralized lubrication system
	Three color light	Synchronus rotary guide bush holder unit
	C:0.001° C axis resolution: 0.001 °	Auxiliary shaft workpiece ejection device
	M Air blow on Sub spindle	Cooling box
0ptionanl units	Bar feeder	Long after loading device
	Chip conveyor	Rectangular power seat
	Oil cooler	Dynamic seat adjustable Angle
	Gun drill	After the end of the quick change perspective
	Oil mist collector	2[ER16]+1 [ER16] 2axis eccentricity tools (rotating)+1axis (fixed)
	High pressure pump	3[ER16] 3axis eccentricity tools (rotating)
	Thread whirling rings	3+[ER16] Back end tools 3axis (rotating)+ 1 axis (fixed)

Detailed Photos
Application
Applications of Swiss Machining
Originally developed for the meticulous Swiss watchmaking industry, Swiss machining has now transcended its original scope, proving invaluable across a multitude of industries. These sectors are reaping the benefits of this sophisticated technology:
1) Aerospace
The aerospace sector greatly benefits from the precision-crafted components produced by Swiss machining. Components like fans and fasteners are frequently manufactured using Swiss technology. The prevalent use of metals such as aluminum alloys and steel ensures both precision and durability.
2) Medical devices
In the medical industry, Swiss-type lathe products are extensively employed to manufacture delicate components with exceptional precision. This method is crucial for creating surgical instruments and implants, demonstrating the transformative impact of Swiss-type lathe technology on medical device production.
3) Electronics
As modern electronics become increasingly compact and intricate, traditional lathes struggle to meet production challenges. Manufacturers have turned to advanced solutions like CNC Swiss machining, which excels at producing sophisticated electronic components such as connectors and pins with unparalleled precision and efficiency.
4) Automotive
The automotive industry extensively utilizes Swiss machining solutions to drive forward the latest mechanical innovations. This technology aids in creating smaller, more intricate components essential for contemporary vehicles.
Automotive manufacturers harness this advanced technology to craft components like suspension parts, carburetor covers, and engine elements. This sector enjoys significant advantages, including reduced costs, optimized manufacturing processes, and accelerated production speeds.
Our Advantages
1. Professional Supplier: Trust in our expert team, devoted to delivering superior precision machinery solutions tailored to your specific needs.
2. Best Quality: Experience unmatched quality standards that ensure reliability and peak performance, reflecting our unwavering commitment to excellence.
3. Best Service: Enjoy exceptional customer service where your satisfaction is our top priority, ensuring a smooth and seamless experience from your initial inquiry through to final delivery.
4. Best Price: Benefit from our competitively priced offerings that provide exceptional value without compromising on quality or service.
Packaging & Shipping
FAQ
1.What products do we have ?
Machine :laser engraving machine ,laser cutting machine ,laser welding machine ,laser marking machine /cnc lathe machine ,swiss type cnc lathe machine ,cnc machine center
2.Why Choose us ?
1)Faster delievery time
2)Full set of production equipment
3)Any third party test can be accepted
4)Payment terms are more flexible ,both TT and LC can be accepted
5)Perfect Pre-sale and After-sale services can be provided within 24 hours online
3.What is the best advantage do we have ?
Best Quality ,Best service ,Best price

---
