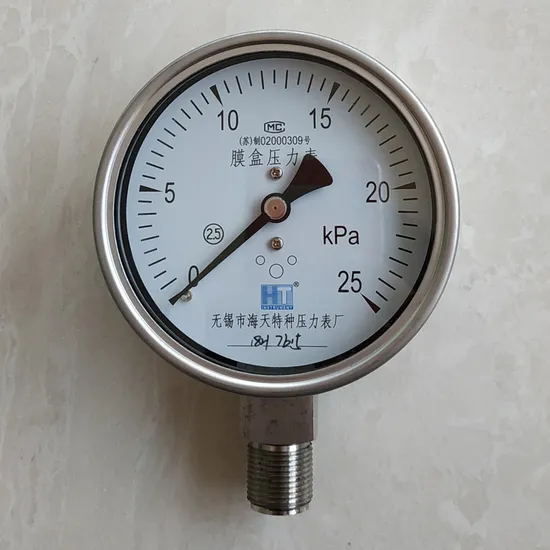

Ye100-Bf, Capsule Pressure Gauge, 4", Micro Pressure, All Stainless Steel, Lower Mount

Product Description

Applications Low pressure pneumatic systems Product Features Low pressure series
Both Copper alloy wetted parts & stainless steel parts
Both back mount and lower mount (radial) are available
Measurement unit could be bar, psi...etc. as per customer request
Specifications

Model	YE60	YE60BF	YE75	YE75BF	YE100	YE100BF	YE150	YE150BF
Nominal Size	Φ60		Φ75		Φ100		Φ150
Connecting Thread	M14×1.5,G1/4",ZG1/4", 1/4NPT,G3/8",ZG3/8"				M20×1.5,ZG1/2",G1/2",1/2NPT,G3/8",ZG3/8"
Accuracy Class	±2.5%,±1.6%
Scale Range (KPa)	Possitive Pressure	0~1.6,0~2.5,0~4,0~6,0~10,0~16,0~25,0~40
	Negative Pressure	-1.6~0,-2.5~0,-4~0,-6~0,-10~0,-16~0,-25~0,-40-0
	Possitive/Negative Pressure	-0.8~+0.8,-1.2~+1.2,-2~+2,-3~+3,-5~+5,-8~+8,-12~+12,-20~+20

Company Profile
Wuxi Haitian Special Pressure Gauge Factory (Wuxi Haite Instrument Technology Co., Ltd.) was established in 1996. The factory covers an area of 15 acres and has a total factory area of nearly 20,000 square meters. We specializes in the production of pressure instruments, thermometers and accessories. The company has inherited decades of manufacturing technology and craftsmanship, and has developed numerous intelligent and standardized measurement products.
Professional technology, exquisite craftsmanship, rich experience, and continuous innovation make Haite Instruments highly favored by users. After more than 20 years of hard work, Haitian Instruments has become one of the special instrument production bases with "multiple varieties and complete specifications". The products are widely used in petrochemical, gas, metallurgy, machinery, electricity, medicine, food and aerospace industries.
The YN series of liquid-filled pressure gauges produced by our factory are selected by many domestic major hydraulic engineering hoist hydraulic stations; the YBF series of stainless steel liquid-filled pressure gauges and YM series of diaphragm pressure gauges have been selected by many power plants and petrochemical companies, especially our products matched with the gas turbine unit of the Yuanwang series of aerospace scientific surveying and mapping ships, and its outstanding quality has been widely praised.
We sincerely hope to establish more extensive business contacts with domestic&foreign enterprises, institutions, distributors, and provide customers with high-quality products and fast services as always.
Certifications
Workshop at A Glance
FAQ: Q: Is there minimum order quantity requirment?
A: Basically yes, but it's case by case.
Q: What's the normal delivery time?
A: 1~2 weeks if no in store
Q: How about the warranty?
A: 1 Year
Q:Is OEM possible?
A: Yes
Q: Is customized product design available?
A: Yes

---
