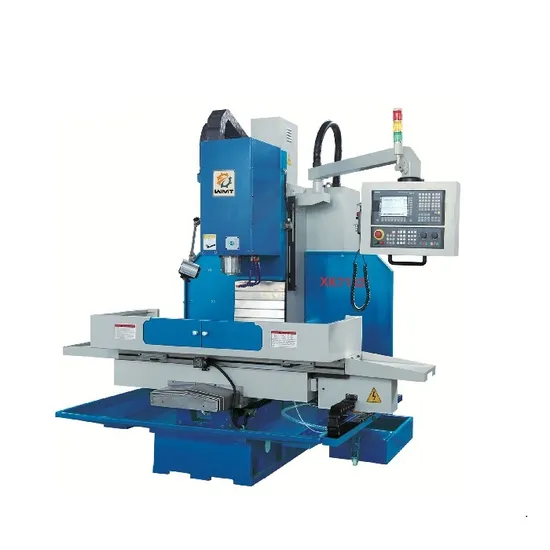

XK7132 China CNC milling machine for precision metal cutting

US$15,200.00
1 Piece
US$15,150.00
2+ Pieces

Basic Info.

Model NO.
XK7132
Structure
Vertical CNC Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Worktable Size
1500*330mm
X Axis Travel
900mm
Y Axis Travel
450mm
Z Axis Travel
500mm
Main Power
5.5kw
Spindle Speed
8000rpm
Spindle
Bt40
Transport Package
Poly-Wood Case
Specification
CE, SGS, ISO
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
845961900
Production Capacity
20 Sets Per Month

Product Description

Main Technical Data:
Specification XK7132
Table size 1500x330mm
X/Y/Z axis travel 900x450x500mm
Spindle motor 5.5kw servo motor
Distance between spindle center and surface column 420mm
Spindle taper BT40
Machine controller GSK980, SIMENS 808D
Rapid speed of X/Y/Z axis 12m/min
X/Y/Z way motor torque X/Y 7.7N/M Z 10N/M
Position precision ±0.02/300m
Spindle speed 20-8000rpm
T-slot 3/18/85
Table load 500kgs
Distance from spindle to table 100-600mm
Packing size 2200x2100x2450

- CNC system optional:
GSK980MDi, Siemens, Fanuc
- 4th axis optional:
Full enclosure optional:
