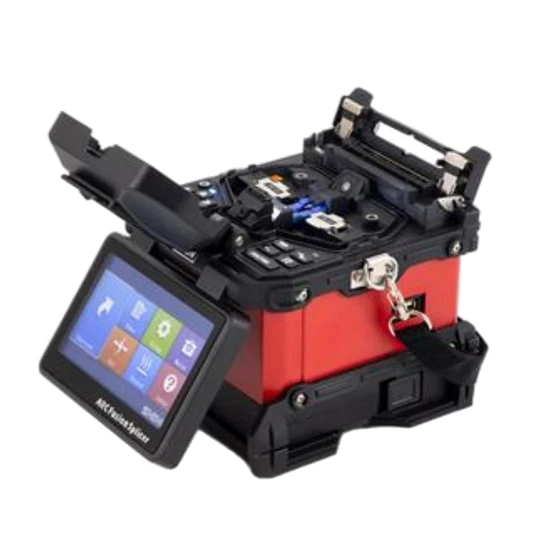

FTTX RJ45 Sm/mm/Ds/Nzds Handheld Arc Splicing Welding Machine FTTH Touch Screen Fiber Optic Splicing Fusion Machine

Product Description

FTTX RJ45 SM/MM/DS/NZDS Handheld Arc Splicing Welding Machine FTTH Touch Screen Fiber optic Splicing fusion MachineThis Fiber Optic Splicing Machine is a reliable, versatile tool for joining and protecting various fiber opticcables. Experience its strong adaptability, high reliability, and user-friendly features.And Fibconet also provides X-series Fusion splicing machines, we have different solutions according to your specific needs.
Our tech team will help you with any problems during purchasing and using.APPLICATIONS
· FTTH· FTTB· Security system
· Field construction· Emergency repair· MAN construction· Underground operation
· Teaching and scientific research
FEATURE
· Compact and lightweight design
· Quick 7-second fusion splicing and 15-second heat shrinking (for 40mm heat shrink tubes)
· High-precision ceramic V-groove and multi-functional clamp for accurate fiber placement
· Automatic fusion splicing and intelligent heat shrinking
· USB and SD card interfaces for automatic software upgrades
· Built-in modular lithium battery for at least 220 cycles of fusion splicing and heat shrinking
· User-friendly touchscreen display with a graphical interface
· Dustproof, waterproof, and shockproof for strong adaptability
· Suitable for multiple fiber splicing and heat-shrinking applications
· Sturdy and durable for use in various environments
technical specification

Product model	6481A9+			6481B5+
Number of motors	Six motors			Four motors
Alignment mode	Accurate core alignment, cladding alignment, manual alignment			Cladding alignment, manual alignment
Welding loss (typical value)	0.02dB(SMF);0.01dB(MMF); 0.04dB(DSF);0.04dB(NZDSF)			0.03dB(SMF);0.02dB(MMF); 0.05dB(DSF);0.05dB(NZDSF)
Welding time (typical value)	7s (fast mode)
heating time	Less than 15s (40mm thin heat shrinkable sleeve, 23 ºC)
tensile test	1.96~2.25N
image display	High performance 4.3 inch LCD screen
Welding record	30000 groups/200 images			30000 groups
Maximum power consumption	80W
Battery capacity	6400mAh		5200mAh
work environment	Temperature: - 10~50 ºC;Humidity: 0~95% RH;Altitude: 0~6000m
External power supply	AC:100~240V,60Hz,0~1.5A;DC:10~15V
External interface	USB / SD
Overall dimension	120mm wide×130mm high×154mm (deep) (without rubber shock pad)
weight	1.8kg (without battery), 2.1kg (including battery)	1.65kg (without battery), 1.95kg (including battery)

Company Profile
Q: The History of our factory?
A: In 2000, Fibconet started our adapters business first and accumulated
funds, then we started producing jumpers in 2006. In 2009 We developed
the splitter workshop. The sales volume exceeded 15 million US dollars
in 2015. In the same year, we began to explore foreign markets.
Q: What kind of package do you usually apply for?
A: We usually use cartons, but they also can be customized
Q: Warranty policy?
A: Fiber Equipment Warranty Notice Warranty period:24months after buying, Generally, there are no questions for application in 20 years.

---
