Optical Fiber Distribution Frame ODF Unit Box Use for Standard 19 Inch Cabinet

Product Description

Yoohon Drawer Type 48 cores ODF Patch Panel Optical Terminal Box
Product Description

Model No.	YH-ODTB-48SC		Origin	China
Product Color	Black / Customized		Material	Cold-Rolled Steel Plate
Trademark	Yoohon		Certificate	CE, ISO9001
Height	48 Cores		Package	Carton
Install Type	Rack Mount		Operating Temperature	-25°~+55°C
Overall Dimension	430x360x85mm		Connection Structure	SC
OEM	Welcome		Application	Optical fiber distribution

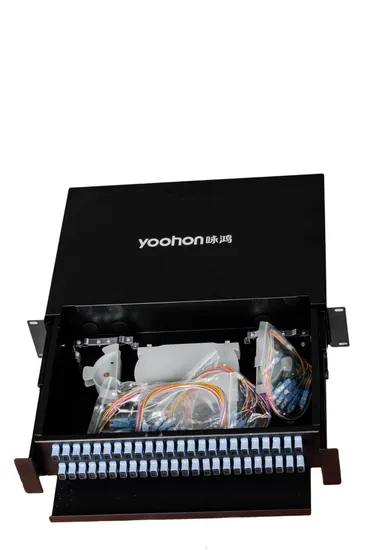

Detailed Photos
Product Features:
1) 1.0mm steel sheet for strong housing.
2) Effectively protect optical fibers from damage.
3) Pluggable and good physical properties.
4) Widely used, suitable for a variety of scenarios.
Basic Function:
Optical fiber terminal box as a cable line terminal equipment should have four basic functions.
1). Fixed function After the cable enters the frame, the outer sheath and strengthening core should be mechanically fixed, the ground protection components should be installed, the end protection treatment should be carried out, and the optical fiber should be grouped and protected.
2). Welding After the optical fiber in the optical cable is fused with the tail cable, the excess optical fiber is coiled and stored, and the welding joint is protected.
3). Allocation function Plug the connector on the tail cable into the adapter to realize optical connection with the optical connector on the other side of the adapter. Adapters and connectors should be able to flexibly plug and pull; The optical path can be freely deployed and tested.
4). The storage function provides storage for various cross-connected optical cables between racks, so that they can be placed regularly and neatly. There should be an appropriate space and way in the optical fiber end box, so that the optical splitter connection line is clear, easy to adjust, and can meet the requirements of the minimum bending radius.
OEM/ODM Service:
(1) OEM/ODM project is welcome
(2) The MOQ for customized products is 100 units or even more.
(3) We always respect our customers'copyright or business secrets. Other Details:
1. Samples policy
For Samll quantity samples,we offer without charges, But shipping and taxes paid by the buyer.
2. About payment
T/T,L/C,and other Payment can be discussed.

---
