Product Details
Product Description
Product Description
Features:

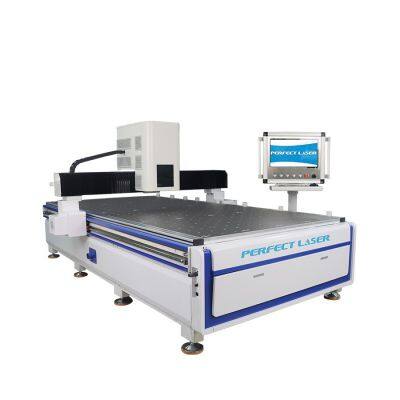

1.The 3d crystal laser machine adopts a newly upgraded gantry integrated vacuum adsorption platform, the accuracy is ±0.03MM, the engraving products are fine and beautiful.
2.Equipped with a new 5.5K high-frequency 532NM ultra-fast laser, using TEC semiconductor refrigeration, can work continuously for 24 hours.
3.Upgraded new large format seamless splicing powerful software, software support format: DXFOBJJPGBMP, etc. Note: all files can be converted into the following formats compatible, while the device supports 3D cameras and 3D scanners all parse data files.
4.The 3d crystal laser machine has a attainable processing range with 1500*3000*130mm. Can be suitable for the size of glass, while equipped with air flotation device, can easily move a variety of glass freely, without scratching the glass surface, and can provide perfect pollution-free internal carving products.
5.The 3D crystal laser machine is used to add layers: ordinary layer and relief layer. Some points include: cutting the back; Integral single side 180°; Overall double-sided 360°.
6.The 3D crystal laser machine supports power off continued carving function; Photos can be sculpted in editing software directly to generate point clouds.
7.The machine structure adopts the integrated design, beautiful appearance, more in line with the optical, mechanical, electrical layout, combined with electronic technology and lighting, can achieve a variety of gorgeous performance effects.
8.The 3D crystal etching machine its the hardware of the control system adopts high-speed galvanometer scanning plus gantry structure XYZ, five-axis linkage engraving, multi-channel motor control and system warning function.
9.Support format for 3D scanner files, software modeling, cameras, mobile phones and other files; The point cloud editing software has high-speed optimization calculation function, can edit ultra-high-definition texture simulation data files, and can produce more than 1 billion point cloud files.
Technical Data:
Product name
| Large Format Glass Laser Engraving Machine
|
Model
| PE-DP-1530
|
Laser
| Semiconductor pump , laser length 532mm
|
Semiconductor life
| 25000h
|
Maximum processing range
| 1500*3000*130mm
|
Carving distance
| 0.07-0.12mm
|
Engraving range
| 40-80um
|
Fastest carving speed
| 4500dot/second
|
resolution
| 1500dpi
|
Batches processing
| support
|
Three axis screw precision
| 0.02mm/300mm
|
Repeat positioning accuracy
| <3um/300mm
|
Total power
| 2300W
|
Cooling type
| Air cooling
|
Environmental temperature
| 15℃-30℃
|
Environmental humidity
| <85%, non-condenate
|
air
| Clean, no corrosive gas
|
Control system
| Windows XP、win7 32bit
|
Voltage and current
| 100-240VAC,5A
|
Power grid volatility
| <10%
|
Power frequency
| 50/60HZ
|
>>
