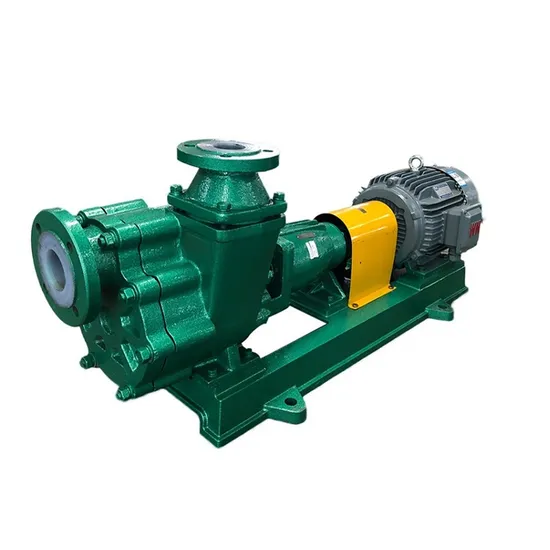

Corrosion Resistance Fluorine Lined Chemical Self-Priming Pump

Product Description

Product DescriptionFZB fluorine lined self-priming pumpis in accordance with the national standards for the design of new technology products and combining the TIF pump design and manufacturing technology, the pump body is composed of a suction chamber, a liquid storage chamber, scroll, back hole, gas-liquid separation chamber etc. composition. Pump start under the action of centrifugal force, residual liquid suction chamber and into the fluid in the pipeline in the air was stir the mixture of water and air into the impeller, the mixture after the volute into gas-liquid separation chamber, with the slower velocity, resulting in gas water separation, air from the pump out liquid outlet, liquid return pump through the return hole, after several cycles, in liquid pipelines in discharging the air net, pump to form a vacuum degree, achieve self absorption effect, performance reached the international standards, can replace expensive imported chemical pump.
ApplicationWidely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.
Structure chart

Part	Material	Part	Material	Part	Material
1.front cover	HT200/F46	8.dynamic ring	SSIC/hard alloy	15.gland of back bearing	HT200
2.pump body	HT200/F46	9.bracket	HT200	16.pump coupling	45#
3.outlet flange	HT200/F46	10.gland of front bearing	HT200	17.diaphragm	304
4.impeller	Fluoroplastic alloy	11.front bearing	Gcr15	18.electric couplling	45#
5.pump cover	HT200/F46	12.pump shaft	45#/304/316/316L	19.shield	304
6.static ring	SSIC/hard alloy	13.bearing box	HT200	20.motor	per client request
7.seal gland	304/316/316L	14.back bearing	Gcr15	21.base plate	HT200

Product Parameters

Model Q (m3/h) H (m) Inlet (mm) Outlet (mm) Motor (kw) RPM (r/min) Max. Suction (m) 25FZB-20 1.6 20 Φ25 Φ25 2.2 2900 1.5 32FZB-20 3.2 20 Φ32 Φ25 2.2 2900 1.5 40FZB-20 6.3 20 Φ40 Φ32 2.2 2900 3.0 40FZB-30 6.3 30 Φ40 Φ32 4 2900 3.0 50FZB-20 12.5 20 Φ50 Φ32 3 2900 3.0 50FZB-30 12.5 30 Φ50 Φ32 4 2900 3.0 50FZB-45 12.5 45 Φ50 Φ32 7.5 2900 3.0 65FZB-20 25 20 Φ65 Φ50 4 2900 3.0 65FZB-30 25 30 Φ65 Φ50 7.5 2900 3.0 65FZB-45 25 45 Φ65 Φ40 11 2900 3.0 80FZB-20 50 20 Φ80 Φ65 7.5 2900 3.0 80FZB-30 50 30 Φ80 Φ65 11 2900 3.0 80FZB-45 50 45 Φ80 Φ65 15 2900 3.0 100FZB-30 100 30 Φ100 Φ80 18.5 2900 3.0 100FZB-45 100 45 Φ100 Φ80 30 2900 3.0

Performance curve
Detailed PhotosExhibition
Packaging & Shipping

---
