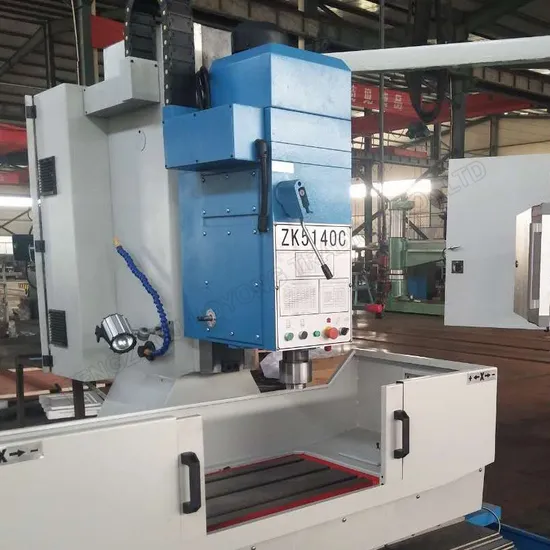

CNC Vertical Automatic Drilling Machine Zk5140 Zk5150 Zk5163c Zk5180c

Product Description

Product Description
1). CNC drilling machine, fitted with Siemens 808D system,
2). Suitable for batch drilling of small & medium metal plate, disc or shell and other complex workpieces,
3). Good flexibility, high accuracy & efficiency.
Product Description
1). CNC drilling machine, fitted with Siemens 808D system,
2). Suitable for batch drilling of small & medium metal plate, disc or shell and other complex workpieces,
3). Good flexibility, high accuracy & efficiency.

Model	Unit	BK5140B
Worktable size	mm	1000x545
Max. drilling diameter	mm	40
Worktable area	mm	850x400
T-slot width x NO.	mm	18x3(100)
Spindle taper	No	Morse 4#
Spindle speed	rpm	45-2000(12 steps)
Main motor power	kw	3
Spindle box stroke (manual)	mm	350
Spindle stroke	mm	240
Moving range	mm	850x400x240
Distance from spindle end to worktable	mm	100-700
Distance from spindle center line to column guide surface	mm	335
Fast moving speed X/Y/Z	m/min	15/15/4
Feed rate (Z axis)	Mm/min	600
CNC system
Servo motor power	kw	1.32
Servo motor torque	N.m	10
Spindle torque	N.m	250
Max. feed resistance	N	12000
Positioning accuracy	mm	0.25/300
Repeatability	mm	0.02/300
N.W./G.W.	T	3/3.5
Machine size(LxWxH)	cm	188x159x236
Package size(LxWxH)	cm	236x249x258

---
