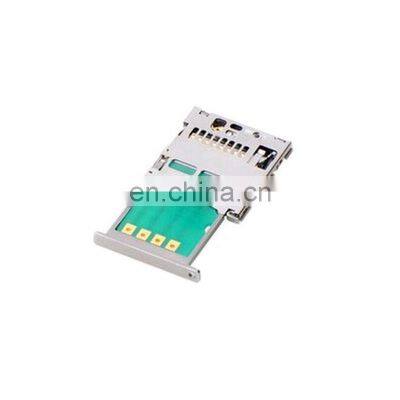

microSD card socket for PCB with SD card tray 5045280892_sd

Product Description

Product Description
microSD card socket for PCB with SD card tray 5045280892_sd
Product Range: Bar-Push 504528 SeriesConnector Type: Micro SDNo. of Contacts: 8ContactsContact Material: Copper AlloyContact Plating: Gold Plated ContactsSVHC: To Be Advised
Specifications
General Product Family Memory Card Sockets
Series 504528
Comments Tray is customer sourced.
Material - Contact Copper Alloy
Material - Shell Stainless Steel
Product Name microSD* Card
Style Pin-Eject Physical
Card Detection Switch Open
Card Entry Location Top
Circuits (Loaded) 8
Circuits (maximum) 8
Color - Resin Black
Durability (mating cycles max) 3000
Ejector Button Side Right Material - Plating
Mating Gold over Nickel
Material - Resin Liquid Crystal Polymer
Net Weight 508.940/mg
PCB Retention Yes
Packaging Type Embossed Tape on Reel
Pitch - Mating Interface 1.00mm
Temperature Range - Operating -25°C to +85°C
Electrical
Current - Maximum per Contact 0.5A
Voltage - Maximum 10V AC (RMS)/DC
Accepts standard micro SIM cards5000 mating cycles, gold-platedHigh temperature SMT materialsIntegral guide railsLow cost, all plastic configurationApplications:Cellular phonesRadio modulesIndustrial RF devicesPCMCIA/CF wireless cardsSIM CARD 06P HINGED
COVER TYPE SMT 90°, WITHOUT LOCATING PEG, WITHOUT CARD PRESENCE SWITCH, ROW PITCH=25.22, H=2.5, GOLD FLASH
