Product Details
Product Description
Product Description
Product characteristics
⚫ 48MHz Cortex-M0+32-bit CPU platform
⚫ HC32L130/HC32L136 series has flexible power consumption tube
Management system, ultra-low power performance
– 0.5 μ A @ 3V deep sleep mode: all clocks are off,
Power-on reset is valid, IO status is maintained, and IO interrupt is valid,
All registers, RAM and CPU data storage status
Power consumption at
– 0.9 μ A @ 3V deep sleep mode+RTC operation
– 7 μ A@32.768kHz Low speed operation mode: CPU and external
Set to run, run the program from Flash
– 35 μ A/ MHz@3V @24MHz sleep mode: CPU stop
Stop, peripheral running, master clock running
– 130 μ A/ MHz@3V @24MHz working mode: CPU
And peripherals to run the program from Flash
– 4 μ S ultra-low power consumption wake-up time, making mode switching more flexible
Live and efficient, more agile system response
⚫ 64K byte Flash memory with erase-protection function
⚫ 8K byte RAM memory with parity check and enhancement system
Stability of the system
⚫ Universal I/O pin (56IO/64pin, 40IO/48pin,
26IO/32pin, 23IO/28pin)
⚫ Clock, crystal oscillator
– External high-speed crystal oscillator 4~32MHz
– External low-speed crystal oscillator 32.768kHz
– Internal high-speed clock 4/8/16/22.12/24MHz
– Internal low-speed clock 32.8/38.4kHz
– PLL clock 8~48MHz
– Hardware supports internal and external clock calibration and monitoring
⚫ Timer/counter
– 3 1-channel complementary universal 16-bit timers
– 1 3-channel complementary output 16-bit timer
– 1 low-power 16-bit timer
– 3 high-performance 16-bit timers/counters with PWM support
Complementary, dead zone protection function
– 1 programmable 16-bit timer PCA, supporting capture ratio
PWM output
– 1 ultra-low power pulse counter PCNT with low power
Automatic timing wake-up function in consumption mode, with maximum timing up to
1024 seconds
– 1 20-bit programmable watchdog circuit, built-in dedicated
10kHz oscillator provides WDT counting
⚫ communication interface
– 2-way UART standard communication interface
– 2-way LPUART low-power communication interface, deep sleep mode
Working under the formula
– 2-way SPI standard communication interface
– 2-way I2C standard communication interface
⚫ Buzzer frequency generator, supporting complementary output
⚫ Hardware perpetual calendar RTC module
⚫ Hardware CRC-16/32 module
⚫ Hardware 32-bit divider
⚫ AES-128 hardware coprocessor
⚫ TRNG true random number generator
⚫ 2-channel DMAC
⚫ 4 * 40/6 * 38/8 * 36 LCD driver
⚫ The world's unique 10-byte ID number
⚫ 12-bit 1Msps sampling high-speed and high-precision SARADC, internal
Set operational amplifier to measure external weak signal
⚫ Integrated with 3 multi-function operational amplifiers
⚫ 2-way VC integrated with 6-bit DAC and programmable reference input
⚫ Integrated low voltage detector, can be configured with 16-order comparison voltage
Monitor port voltage and power supply voltage
⚫ SWD debugging solution, providing full-function debugger
⚫ Working conditions: - 40~85 ℃, 1.8~5.5V
⚫ Package form: QFN32/48, LQFP64/48, TSSOP28
Supported models

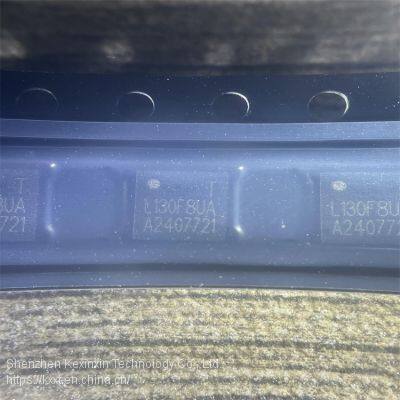

HC32L136K8TA HC32L130F8UA
HC32L136J8TA HC32L130E8PA
HC32L130J8TA HC32L130J8UA
Price: 1-1.4
>>
