| No. | Name | Model | Technical Specification | Unit | Qty |

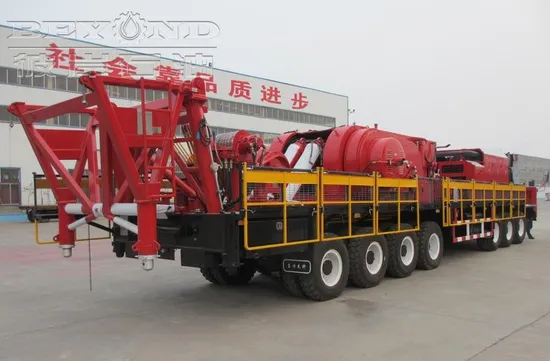

| Drilling Rig | ZJ-30 | (drilling depth): 3000m (4-1/2" DP) | |||
| (max. hood load): 1800KN | |||||
| (rated power): 540HPx2 | |||||
| (amst height): 38m | |||||
| (racking board height): 22m, 23m, 24m | |||||
| (traveling system): 6×5 | |||||
| (carrier drive): 14×8 | |||||
| (drill line dia.):φ32mm | |||||
| (outline size): 23×3.2×4.5m | |||||
| (max. drive speed): 45km/h | |||||
| (Total Weight): 76000kgs; | |||||
| (main rig unit working temp): -19ºC----40ºC | |||||
| 1 | Carrier | XD70/14×8 | (carrier drive): 14×8 | ||
| (climbing degree): 26% | |||||
| /(approaching/depart angle): 26°/18 | |||||
| (clearance): 311mm | |||||
| (min. turning radiu): 19.5m | |||||
| 1.1 | Truck frame | c/w frame, mud fender, raising cylinder base and hydraulic jack beam. | set | 1 | |
| 1.2 | Axle | CQ | joint | 6 | |
| 1.3 | Wheel tire | 18-22.5/12R20 | front single tire/ back dual tire | pcs | 20 |
| 1.4 | Driver's Cabin | cab with single driver | set | 1 | |
| 1.5 | Hydraulic jack | Y3030B | pcs | 4 | |
| 1.6 | Steering system | c/w steering pump, cylinder, pipeline etc. | set | 1 | |
| 1.7 | Suspention system | set | 1 | ||
| 1.8 | Transmission shaft | CZD | set | 1 | |
| 1.9 | fuel tank and air chamber | c/w dual fuel tank and air storage | set | 1 | |
| 2 | Diesel engine | C15 | (power):540HP x2 | set | 2 |
| (speed):2100r/min | |||||
| 3 | Transmission case | M5620AR | :550HP; : 2500rpm ; : 3078N•m Power: 700HP; Max. Speed: 250rpm; Max. Torque: 3078N.m | set | 2 |
| 4 | Compound transfer case | BFX260 | (max. torque): 26kN.m | set | 1 |
| (input speed) : 2100rpm | |||||
| 5 | Angle gear box | JCX150 | (max. torque): 15kN.m | set | 1 |
| (input speed): 2100r/min | |||||
| 6 | Drawworks | JC28/11 | (input power): 735KW | set | 1 |
| (input speed): 450r/min | |||||
| (fastline force): 280KN | |||||
| (band brake+auxiliary brake) | |||||
| (crown saver) | |||||
| inner circuilating cooling for brake rim | |||||
| Bailer Drum Wirerope Pull:110KN; | |||||
| Bailer Drum Dia.: φ340mm | |||||
| Bailer Drum Wirerope Dia.: φ9/16" | |||||
| Bailer Drum Brake Drum Size: Φ970×210mm | |||||
| 7 | Auxiliary brake | WCB324 | Eaton | set | 1 |
| 8 | Mast | JJ18038 | dual section mast, with front opening, c/w guyline and cylinders for raising and teslescoping (max. load):1800kN | set | 1 |
| (efficient height):38m (racking board capacity):4000m(4-1/2″Drill Pipe) Racking floor height:22m /23m /24m (wind capacity):(, no hook load and setback)110km/h c/w racking board, guyline, ladder and safety equipment | |||||
| 9 | Mast raising mechanism | Double telescoping cylinder; double-raising cylinder | set | 1 | |
| 10 | Substructure | DZ180/6 | foldable substructure | 1 | |
| floor size:7.2×6(m) | |||||
| (max. load):1800kN | |||||
| working height:6m | |||||
| clearance under rotary beam:4.8m | |||||
| DP capacity (4-1/2" Drill Pipe)3000m | |||||
| 11 | Travelling system | API Spec 8A(5×6) conform with API standard 5x6 line system. drill line dia. :φ32mm; max. hood load:2250KN | set | 1 | |
| 11.1 | Crown block | TC180 | sheave no.:6 | set | 1 |
| max. load:1800kN | |||||
| drill line dia.φ32mm | |||||
| 11.2 | Hook block | YG225 | max. load:2250kN | set | 1 |
| sheave no. :5 | |||||
| 11.3 | Drilling line | φ32 | 460, API Spec 9A 460 meters length | set | 1 |
| 12 | Swivel | SL225 | swivel load:2250kN | set | 1 |
| rated working pressure :35Mpa | |||||
| washpipe dia. :φ76mm | |||||
| 13 | Hydraulic cathead | Y15160 | 100KN connect force | set | 2 |
| 150KN break force | |||||
| 14 | Rotary table gearbox | ZPX60D | set | 1 | |
| 15 | Sloping chain box | set | 1 | ||
| 16 | Rotary table | ZP205 | open hole dia. :520.5mm(20 1/2") | set | 1 |
| max. load: 4450kN | |||||
| 17 | Brake cooling circulation system | set | 1 | ||
| 18 | Pneumatic system | rated pressure: 0.85MPa; c/w valves and pipeline (main parts imported). | set | ||
| 19 | Hydraulic system | rated pressure:14Mpa; .c/w valves and pipeline (main parts imported). | set | 1 | |
| 20 | Electrical system | carrier voltage:24V; mast voltage:220V; crown block c/w red alert lamp, mast, substrucutre and the rig c/w ex-proof lamp. | set | 1 | |
| 21 | Standpipe | 4″ | joint | 1 | |
| 22 | Hose | 4″ | 35MPa, 17m working pressure 35Mpa, 17 meters long | joint | 1 |
| 23 | Racking platform escaper | set | 1 | ||
| 24 | Climbing assistant device | set | 1 | ||
| 25 | Anti-falling device | set | 1 | ||
| 26 | Deadline anchor and weight indicator& | JZ250 | set | 1 | |
| 27 | Elevator links | DH250 | set | 1 | |
| 28 | Hydraulic winch | YJ3C | set | 1 | |
| YJ5B | set | 1 | |||
| 29 | Drilling pipe V-door and catwalk way | set | set | 1 | |
| 30 | Mast base | set | 1 | ||
| 31 | Rig base | set | 1 |
