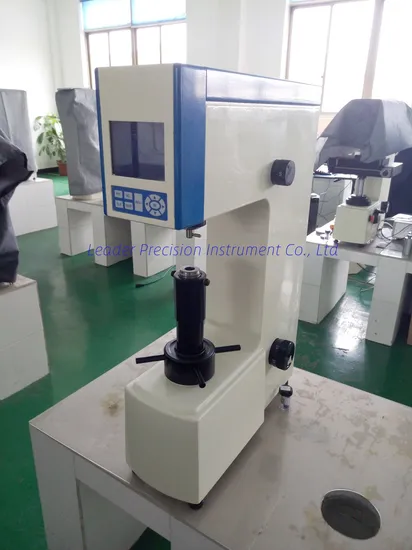

Digital Twin Rockwell Hardness Tester with Big LCD Display (HR-145D)

Product Description

Digital Twin Rockwell Hardness Tester With Digital LCD Display (HR-145D)

Usage
Model HR-145D Digital Twin Rockwell Hardness Tester is suitable to determine the Rockwell & Superficial Rockwell hardness of ferrous metals, alloy steel and hard alloy, as well as treated layers of metal surface, such as carburized layer, nitrided layer and electroplated coating, etc.
Features & Advantage
Twin tester--Regular Rockwell & Superficial Rockwell hardness for metal and plastic material.
Conversion to all other hardness scales, such as Vickers and Brinell
Menu Operated LCD screen, with Conversions, Date, Time
Integrated printer for test result and statistics
RS-232C interface is available
Accuracy conforms to EN-ISO 6508-2 and ASTM E-18
Specifications

Product name	Digital Rockwell and superficial Rockwell Hardness Tester
Model	HR-145D
Rockwell Scales	A, B, C, D, E, F, G ,H, K, L ,M, R, P, S, V
Superficial Rockwell Scales	15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y
Display conversion to	HV, HB, HR scales
Preload	3kgf(29.4N), 10kgf(98.07N)
Rockwell Test loads	60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N)
Superficial Rockwell test loads	15kgf(147.1N), 30kgf(294.2N), 45kgf(441.3N)
Dwell time	1-60S
Hardness indication	Digital LCD Display
Resolution	0.1HR
Loading Control	Automatic
Data Output	RS-232C and Built-in Printer
Max. Height of Specimen	175mm
Instrument Throat	165mm
Dimension (L*W*H)	550 x 260 x 780mm
Gross/Net Weight	120Kg/90Kg
Power supply	110V/220V, 50HZ
Accuracy	EN-ISO 6508 , ASTM E-18, GB/T230.2

Standard delivery

Main Unit	1pcs
Thermal Printer	1pcs
Data-output RS-232C	1pcs
Cone Diamond Indenter	1pcs
Ø 1.5875 Ball Indenter	1pcs
Ø1.5875mm Steel Ball	1pcs
Large Flat Anvil	1pcs
Small Flat Anvil	1pcs
V-notch Anvil:	1pcs
Hardness Test Block (85-100) HRB	3pcs
Adjustable feet	4pcs
Accessories Case	1pcs
Anti-dust Cover	1pcs
Installation & user manual	1pcs

Quality System 1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.
2. All our measuring machines are with CE certification
3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.
4. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!
5. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and
has won the trust of customers! After-sale Service
1. Free professional operation training
2. Warranty: 18 months instead of 12 months
3. Regularly upgrade of software is available free
4. Available lifetime technical support

---
