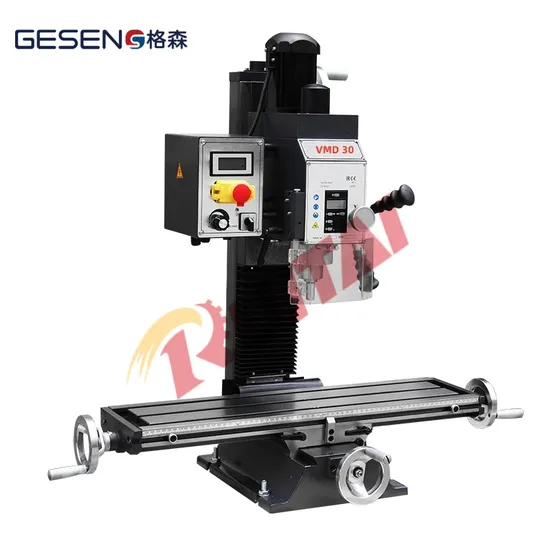

Gesen Vmd Small End Face Milling Drilling Machine Screw Cutting Vertical Lathe

US$1,550.00-1,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMD30
Type
Tool Milling Machine
Object
Metal Milling
Structure
Vertical
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Mt3
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
in Wooden Case
Specification
Standard configuration
Trademark
GESEN
Origin
China
HS Code
8459590000
Production Capacity
50000sets/Year

Product Description

Household Micro Drilling Milling Machine VMD20
Household Micro Drilling Milling Machine VMD30
Parameters
Parameters VMD20 VMD30 VMD38 VMD48
Maximum drilling diameter 20mm 26mm 38mm 48mm
Maximum face milling capacity 53mm 63mm 63mm 80mm
Maximum vertical milling capacity 18mm 23mm 21mm 32mm
Maximum tapping capacity M30 M30
Workbench size 500×145mm 700×180mm 700×180mm 800×240mm
T-slot size 10mm 12mm 12mm 16mm
X-axis travel 300mm 480mm 500mm 580mm
Y-axis travel 160mm 175mm 175mm 200mm
Z-axis travel 220mm 270mm 320mm 350mm
Spindle taper MT2 MT3 MT3 MT4
Spindle stroke 50mm 50mm 80mm 130mm
Distance spindle axis to column guide 170mm 200mm 203mm 260mm
Spindle end to table distance 280mm 300mm 445mm 450mm
Headstock swirl angle around ±45° ±45° ±45° ±45°
Spindle speed/Grade 50-2250rpm 50-2250rpm 95-1420rpm/6 80-1250rpm/6
Motor 750w 1000w 0.75kw 1.5kw
N.W./G.W. 78kg/100kg 125kg/150kg 200/245kg 330/380kg
Machine size 670*550*760mm 860*550*870mm 730*840*1010mm 845*910*1020mm

Industrial Drilling Milling Machine VMD38 VMD48
Optional configuration:
X-axis auto-feeding; 3-axis digital display; ground cabinet. Model VMD38
