High Precision 8kw Steel Laser Cutting Machine for Steel /Mild Steel/Carbon Steel /Stainless Steel/Aluminum/ Copper/Alloy

Product Description

high precision 8kw steel laser cutting machine for steel /mild steel/carbon steel /stainless steel/aluminum/ copper/alloy I.Features 1.Double Table ,Save time for loading and unloading materials.
2.The cutting area is protected by a cover to prevent splashes and be safe
3.With a camera, the cutting situation is clear at a glance.
4.Hydralic exchange table is avaliable.
II. Advantages 1.Steel Plate Welding Bed 1.Our laser cutter body is welded by plate. After welding, the stress is removed by one-time quenching. After natural cooling, the rough machining is performed, then the stress is removed by two-time quenching, and after natural cooling, the finishing is performed. The equipment within 13m is integral type, and the upper gantry milling machine is processed once.
Body advantage: it is more strong and stable. Using long time, it is also have high accuracy and ensure cutting accuracy.

2.Process dust extraction experts, ship-type box design, partitioned dust extraction, more concentrated and reasonable air ducts, and better dust extraction effect;

3.Three exchange table modes: parallel exchange (standard), mechanical lift exchange, hydraulic exchange, to meet the different preferences and needs of global users, to meet the personalized customization.


2. Cast Aluminum Beam Adopts aluminum cast beam, light weight, good dynamic response, faster acceleration and better comprehensive cutting effect;
3. High-end Intelligent EtherCAT Bus System FSCUT8000 is EtherCAT bus system designed for ultra high power fiber laser above 8KW, featured by out of box service, easy to install and adjust, full solution functions. It supports customization, automation and informatization solutions, is the leading edge EtherCAT laser cutting control system on the market.

4.Intelligent bus control cutting head, Active Collision Prevention It can adjust focal point by itself according to material thickness and apply to multiple focal lengths, reducing punching duration and improving punching quality, moreover, which will perceive the surroundings and lift up to avoid obstacles intelligently;Flying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting.
5.Imported Parts, Precision Guaranteed

Equipped with dualhigh-powered servo motors and drivers which from German	Core transmission parts like speed reducer and gears are imported from Japan	High-precision racks,guide rails and ball screws are produced by world-famous brands.

6. Quality Control System Rigorous quality inspection of the assembly process, perfect quality system, high-precision inspection and inspection equipment: laser interferometer, laser collimator and three-coordinate projector, to ensure that each delivered customer equipment can meet the company's factory quality standards;
III. Parameters

Model	JLMA3015	JLMA4020	JLMA6020	JLMA6023	JLMA8025	JLMA10025	JLMA12025	JLMA12030
Power	12KW-40KW
Working Area (L*W)	3000*1500mm	4000*2000mm	6000*2000mm	6000*2300mm	8000*2500mm	10000*2500mm	12000*2500mm	12000*3000mm
X/Y-axis Positioning Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
X/Y-axis Repositioning Accuracy	±0.01mm	±0.01mm	±0.01mm	±0.01mm	±0.01mm	±0.01mm	±0.01mm	±0.01mm
Positioning speed	150m/min	150m/min	150m/min	150m/min	150m/min	150m/min	150m/min	150m/min
Max. Acceleration	2G	2G	2G	2G	2G	2G	2G	2G

*The above data are for reference only, subject to the actual product!

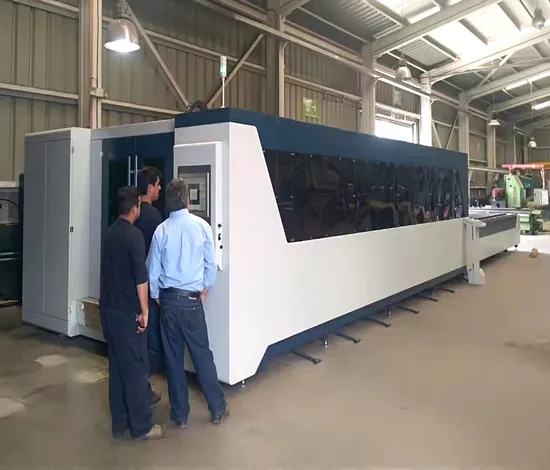

IV. Customers


V. Cutting samples

---
