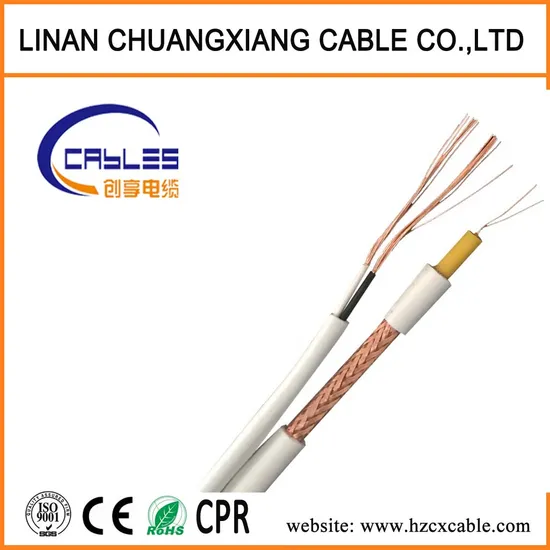

Statellite Cable RG6 Bulk Cable Wire RG6 Coaxial Cable CATV CCTV Cable TV Cable Rg58 /Rg 59 /Rg59 with Power White RG6 Rg-6 2c Coaxial Cable Reel
| Negotiable |
30,000 Meters
(MOQ)
|
Basic Info.
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
RoHS, CE, ISO9001, CCC
Insulation
Foam PE/Solid PE
Second Shield
Al Alloy Braiding
Jacket Color
According to Customers
Transport Package
305m/Wooden Reel
Specification
CE/SGS/ROHS/ISO
Trademark
OEM or CX-Cable
Production Capacity
20000boxes/Per Month
Product Description
Product Description
| Structure | Material | RG6 DUAL | RG6 TRI | RG6 QUAD |
| Conductor | BC/CCS | 1.02mm(18AWG,0.04'') |
| Dielectric | FPE | 4.57mm(0.18'') |
| 1st Shield | Al Foil | 100%, Overlap>2mm |
| 2nd Shield | BC or Al Braiding | 30%-95% | 60% |
| 3rd Shield | Al Foil | - | 100%, Overlap>2mm |
| 4th Shield | BC or Al Braiding | - | - | 40% |
| Jacket PVC/PE | Outer Diameter | 6.91mm(0.272'') | 7.02mm(0.276'') | 7.62mm(0.30'') |
| Nominal Thickness | 0.76mm(0.030'') | 0.76mm(0.030'') | 0.86mm(0.034'') |
| Messenger | Steel | 1.30mm or 1.83mm |
| Dielectric Adhesion | >20N/5cm |
| Breaking Strength of Messenger | 1.30mm 82kgf;1.83mm 166kgf |
| Impendence | 75±3 Ohm |
| Capacitance | 50±3.0 nf/KM |
| Return Loss (100% swept) | 1~470MHz | ≥22dB |
| 470~1000MHz | ≥20dB |
| 1000~2200MHz | ≥18dB |
Application Detailed Photos
Packaging & Shipping
>>
