Product Overview

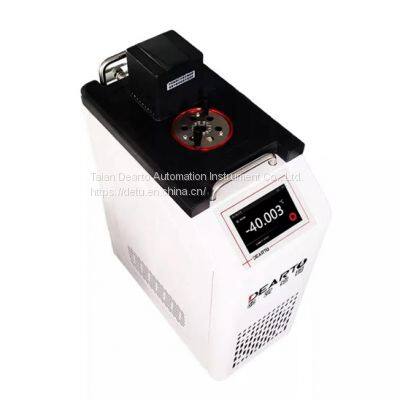

DTS-BG ultra-portable intelligent constant temperature oil bath is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification/ calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.
FEATURES AT A GLANCE
Operation interface
Starting interface
Curve display interface
Setting interface
PRODUCT SPECIFICATIONS
Product name
| Intelligent micro refrigerated/heated thermostatic bath
|
Model
| DTS-10BG
| DTS-20BG
| DTS-30BG
| DTS-95BG
| DTS-125BG
| DTS-40BG
|
Temperature range
| -10℃~180℃
| -20℃~150℃
| -30℃~150℃
| -40℃~95℃
| -40℃~125℃
| Customized
|
| -20℃~180℃
|
|
|
| -40℃~150/180℃
|
Control method
| Touch screen
|
Display resolution
| 0.001℃
|
Temperature fluctuation
| ≤±0.02℃/10min（0℃）
|
Temperature uniformity
| ≤0.02℃（0℃）
|
Heating rate
| 6.5℃~11.5℃/min
|
Cooling rate
| 5℃~10℃/min（20℃）
|
Work area size
| Φ80×280 mm
|
Dimensions（mm）
| 500(L)×220(W)×600(H)
|
Working medium
| Special medium
| Anhydrous alcohol
| Special medium
|
Remarks
| Flange size can be customized according to customer needs
|
