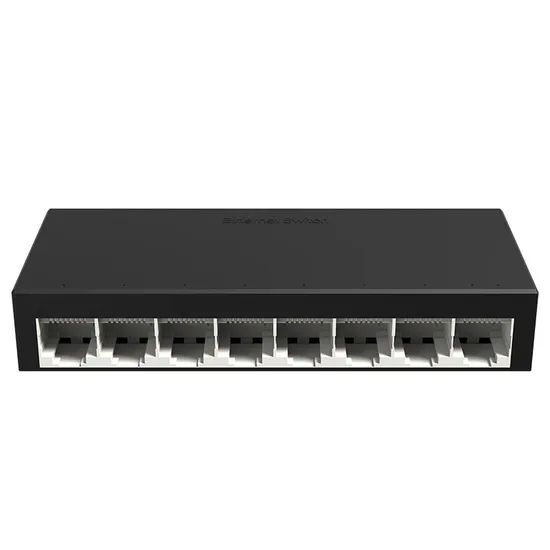

Network Appliance 8 Giga Ethernet Ports Electronic Switch

Product Description

Fibridge F6C-5800-8GT series network switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 8* 10/100/1000 Mbps Ethernet interface. The device is built-in power module, you can choose 220V AC input or 12V DC input. You can also have options from 220V AC input or DC48~56V when the product is PoE+. The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is 0ºC~+70ºC,10%~90(no condensation).
Product Features Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p forward mode;
Reliable performance
Support for Port auto-negotiation;
Support flow control;
Industrial &Modular design make the equipment reliable and flexible;
Support overload protection;
Anti-link protection is supported;
Support light hot plug
PoE function is optional
ISO9000 QualifiedPass test by Ministry of Public SecurityObtain network qualification certificate
Detailed Photos

Product Parameters

Network Characteristics
Ethernet Protocol	IEEE IEEE802.3/802.3u/802.3x/802.3Z/802.3AB store-and-forward
Flow Control	IEEE802.3x flow control, back-pressure flow control
Network Interface	ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	No
MAC Addresses	8K
Jumbo Frame	None
Cache	4M
Packet Buffer	20Gbps
Packet Forwarding Rate	14.88Mpps
Management	No
Optical Characteristics
Optical Interface	N/A
Fiber Core Count	N/A
Wavelength	N/A
Fiber Mode	N/A
Environmental Characteristics
Temperature	Working temperature: 0ºC~70ºC Storage temperature: -20ºC~85ºC
Humidity	Working temperature: 10%~90% RH no condensation Storage temperature: 5%~90% RH no condensation
Power	AC 100-240V/50-60Hz 260W embedded switch power, DC48~56V 260W external DC power(PoE) DC12V 1A external DC power (Not PoE)
MTBF	≥100000 hours
Mechanical Characteristics
Structural Dimension	163× 122× 52mm
Product Weight	0.8kg

Ordering Information

Model	Port	Management
F6C-5800-8GT	8*10/100/1000MBase-T(X) auto-adapt RJ45	None
F6C-5800-8GTP	8*IEEE802.3at/af standard PoE ports	None

Business Terms
Price is FOB Mainland, China. Price includes single core wall mount power adapter. Commercial level, 1 year warranty 100% in advance payment. About Fibridge
Established in 1995; 28 years' experience tells our reliability and high reputation. Full product series, including Industrial Switch, optic telecommunication and Video surveillance series. Products have been exported to more than 110 countries. Successful application of Industrial switch in Railway, Metro, Smart city, Highspeed road, etc.
Fibridge successful cases:

Beijing Daxing Airport gallery project	Nanchang Subway line 2 PIS system	Tianjin subway line 5 PIS system	More than 1000 units F6-M16GT2GX has been used in Shenzhen subway project which includes 8000 units surveillance cameras.

Packaging & Shipping

---
