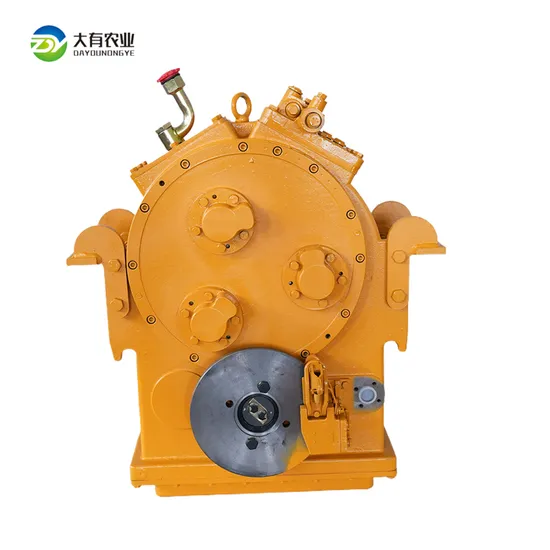

Factory Engineering Machinery Excavator Loader Cast Iron 428 Planetary Gearbox for Power Transmission

Product Description

Factory engineering machinery excavator loader Cast iron 428 planetary gearbox for power transmission
Product Description
Features of construction
The assembly of the clutch is complex, taking the reverse clutch as an example, including the assembly of gear ring components, seals, return springs, friction plates and other steps, and the assembly accuracy and order have strict requirements. For example, when the friction plate is assembled, there are 6 active plates (sintered powder metallurgy material) and 5 slave plates (spring steel material and one side has 0.1 mm of concave), and attention should be paid to the details such as the convex face of the slave plate towards the piston when assembling.
Assembly assembly involves the installation of multiple components and components, such as bearing end caps, each clutch assembly, box covers, etc., and the axial clearance of each bearing needs to be adjusted to ensure the normal operation of the transmission.

Scope of application:
Suitable for Liugong, Xiagong, Longgong, Linggong and other brands of loaders, forklifts. Different construction machinery and equipment have different requirements for the performance and adaptability of the gearbox, and the gearbox has been designed and optimized to meet the needs of these equipment in various working conditions. Detailed Photos Product Parameters

Stalls	F1	F2	F3	F4	R1	R2
30 I speed Ratio	3.82	2.08	1.09	0.59	3.05	0.87
30-II speed Ratio	8.2	3.65	1.1	0.49	6.33	0.85
ZL20 speed Ratio	2.96	1.78	1.105	0.665	2.16	0.804

parameters		ZL30
Rated input power		92KW
Rated input speed		2500r/min
Input/Output center distance		650N.m
Torque converter zero speed torque ratio		3.0-3.6
Operating oil pressure		1.3~1.5MPa
Lubricating oil pressure		0.15~0.25MPa
Brake relief valve operating pressure		>0.55MPa

Gearbox dimensions
Company Profile
Qingzhou Yunqi Machinery Sales Co., Ltd. is located in the Economic development zone of Qingzhou City, Shandong Province, with superior geographical location and convenient transportation. It has two branches, Qingzhou Dayou Agricultural Equipment Technology Co., Ltd. And Qingzhou Shunye Machinery Technology Co., Ltd., mainly engaged in sugarcane harvester and construction machinery gearbox.
Dayou Agricultural Equipment Technology Co., Ltd. Has a complete set of large-scale factory 10000 square meters, office area 1500 square meters. At present, the company has seven departments including manufacturing department, technology department, research and development center, purchasing department, Marketing Department (including international market management department), after-sales service department, and comprehensive department, and has the independent management ability and channels of machinery import and export foreign trade. The company has two full-time technical consultants, and has maintained long-term cooperation with several major national research institutes and professional colleges. The company has strong technical force, 3 senior engineers, 12 R & D, design and process engineers, and rich work experience. Excellent sales and after-sales team is the main guarantee for customer service. Qingzhou Dayou is fully capable of providing comprehensive solutions for our customers to relieve all the worries of customers.
