High Speed Baby Diaper Making Machine

Product Description

MACHINE DETAILS

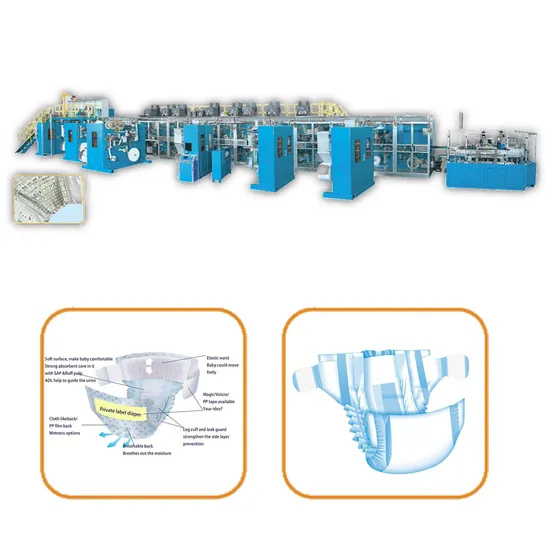

The size of the full servo big waist baby diaper making machine is 38m*8m*4.5m(based on the product provided by the client) and the machine weight is 100tons approximately. The machine is equipped with servo control and smart system configuration, including a program system, tension system, driven system, packaging system, safety system, and web guiding system. The machine has high production capacity, can work continuously, with few interruptions, working speed of 600 pieces/min, which can produce a large number of baby pants in a short time. The uncoiling is stable during splicing, and the splicing can be automatically spliced or the button splicing can be controlled. The splicing speed can be set separately on the operation screen. The roll diameter of the raw material splicing type can be accurately adjusted to save raw materials.

Design Speed	600pcs/min
Stable Work Speed	500pcs/min
Power Supply	380V±5%,50HZ(3 phase,4lines,ground-in)
Installation	300KW(excluding air compressor,glue machine)
Power Used	350KW
Air Compressor	0.6-0.8Mpa
Product weight Tolerance	±5
Qualified Rate	≥97%(excluding glue,splice,raw jointer defectives)
Efficiency	≥85%
Machine Size(L*W*H)	38m*8m*4.5m
Working Size(L*W*H)	40m*10m*6m
Machine Weight	100Tons
Machine Color	Rich White(can be designed as customer's demand)
Machine Direction	Face the machine from left to right (can be designed as customer's demand)

The full servo big waist baby diaper making machine adopts servo motor driven,human-computer interface, easy and fast operation, the product model only needs to be adjusted on the touch screen, the amount of cotton paste applied, the amount of polymer applied, and the splicing speed can be set respectively on the operating screen,) raw materials lacking, jointer, splice, fans & vacuum pump jump-off, all display the real-time information and production speed(pcs\min), shift output, rejecting quantity, total capacity, are interface display. The servo drive system can adjust the speed and force of the production line according to the requirements of the product, thus ensuring the quality and stability of the product. The human-machine interface can be manipulated and has many features beyond those listed above. It is used in the manufacture of high-quality baby diapers. The raw materials used in the production of baby diapers are cotton core (mixed with SAP), ADL, PE film, Frontal tape, Topsheet hydrophilic nonwoven, Leg cuff hydrophobic nonwoven, etc.
Welcome to contract us!!!
MACHINE FEATURES

MACHINE PRODUCTION WORKSHOP

FINISHED PRODUCTS
Big waist baby diaper
