Saddle Move Type Surface Grinding Machine M7135A-2 350X800

Product Description

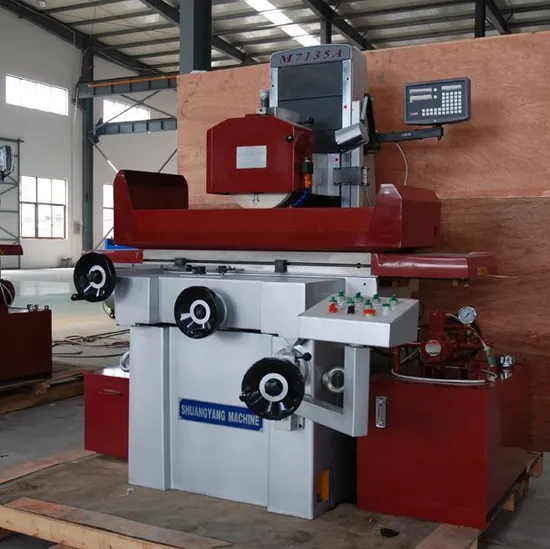

SURFACE GRINDING MACHINE M7135A
Hydraulic automatic with magentic table
Compact structure, and easy operate
Worktable longitudinal movement is supported by hydraulic system, it's light and flexible
Worktalbe cross movement can work automaticliy or manually
We have a special structure on the grinding head which can make fast movement, manual movement and fine adjustment
We adopt tetrafluoroethylene soft belt on the contact surfaces of worktable and saddle guideway, This kind of design will make long

Description			M7135A-3	M7135A-2	M7135A-1
G rinding Capacity: LX W XH		mm	1000*350*405	800*350*405	600*350*405
Longitudinal table travel		mm	1020	820	620
Cross table travel		mm	390	390	390
Max. Distance from the spindle centre to the worktable surface		mm	580	580	580
S afety load of bench ( in max )		kg	400	400	360
T able size		mm	1000*350	800*350	600*350
T-slot		mmXn	18*3	18*3	18*3
B ench speed		m/min	0-26	0-26	0-26
Cross rapid feed		mm	0.5-20	0.5-20	0.5-20
C ross handwheel	Per graduation	mm	0.02	0.02	0.02
	per revolution	mm	4	4	4
Grinding W heel size( DXWXd)		mm	350*32*127	350*32*127	350*32*127
S pindle Speed		R/min	1450	1450	1450
V ertical fine adjustment revolution		mm	0.04	0.04	0.04
V ertical per fine adjustment graduation		mm	0.001	0.001	0.001
S pindle moter		kw	5.5(Y132S-4 B5)	4(Y112M-4 B5)	4(Y112M-4 B5)
O verall dimensions: (LXWXH)		mm	2660*1722*1917	2260*1722*1917	1860*1700*1917
Packing size(LXWXH)		mm	2800*1920*2180	2400*1920*2180	200*1920*2180
G/N weight		T	3.9/3.5	3.3/3	2.7/2.4

WORKSHOP
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
