Product Description
Product Description

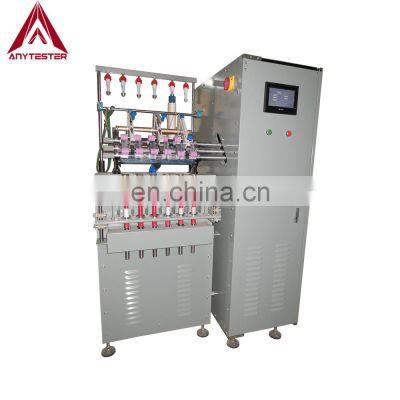

Product DescriptionAT206 Laboratory Ring Spinning Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT206 Laboratory Ring Spinning Machine is used to spin yarn from roving by ring spinning method. SpecificationModelAT206Number of spindles6Fiber typeCotton or cotton-type chemical fibersCustomized for woolTwist range50~250twists/meterDraft rangeApprox. 2~50Output capacity0.25~0.5kg/hRoller diameterΦ25/25/25mmRing diameterΦ38 ~ 45mmSpindle speedMax. 12000rpmBobbin length205mmTwist directionZ or S, settablePower supplyAC220V 50Hz, 550WDetails & Features1. Mini machine, save researching cost and easy to operate and maintain;2. Touch screen & PLC control;1. Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen; 1. Frequency converter of high efficiency to control roll speed;2. Pressurizing system :spring pressure cradle;3. Three-up-three-down drafting structure;4.Optional special program for spinning slub yarn on this ring spinning machine;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
