RM12 High Frequency Transformer

Product Details

Product Description

Product Description

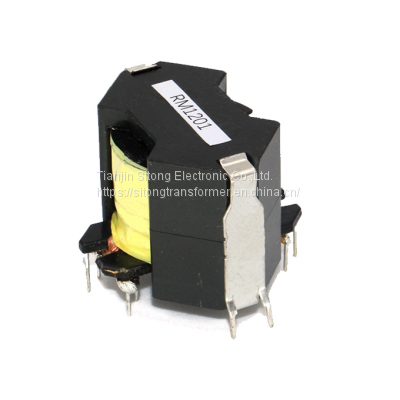

RM12 High Frequency Transformer
An electronic transformer is a device that is used to either raise or lower voltages and currents in an electrical circuit. In modern electrical distribution systems, transformers are used to boost voltage levels so as to decrease line losses during transmission.
High frequency transformer is a kind of electronic transformer which work frequency exceed 10 kHz, it widely used in switch power supply, inverter power supply, power meters, Telecom, inverter welding machine and photovoltaic, etc.High frequency transformer as the most important parts in switch power supply, there are so many topological structures, such as forward full/half Bridge structures.
Sitong Electronic not only could manufacture forward half/full bridge transformers, also have other circuit transformers, such as flyback transformers, converter transformers, inverter transformers, push-pull transformers, LLC transformers, etc.
Specification:

Type	Structure	Dimension（mm）			Pin Row（mm）		Row Pitch(mm)	OD Pin（mm）	Note
Type	Structure	A	B	C	Pin	E1/E2	F1/F2/F3	OD Pin（mm）	Note
RM12-01	Vertical	40.0	40.0	26.0	6+6	3.4/10.6	21.5/28.7/36.0	Φ0.8	TYPE 1

Advantage
1. Our materials resource from the suppliers in our UL lists (UL E364966). They have passed RoHS certificate. If you have pointed supplier, it is also available. We will inform in advance if there are any changes about the materials or suppliers.
2. Sitong Electronic has passed ISO9001:2015, our procedures according to the ISO requirements strictly. Our SOP is same as the customer’s requirements, and the batch goods are same as the delivered samples.
3. The goods will be inspected 2 times before delivery to ensure the best quality: All the products will through testing before varnish, and will be 100% tested before package. Twice testing including: turns, inductance, Hi-pot, leakage inductance, DCR, visual inspection, etc.
