Cutting Lead Ingot Machine for Lead Oxide

Product Description

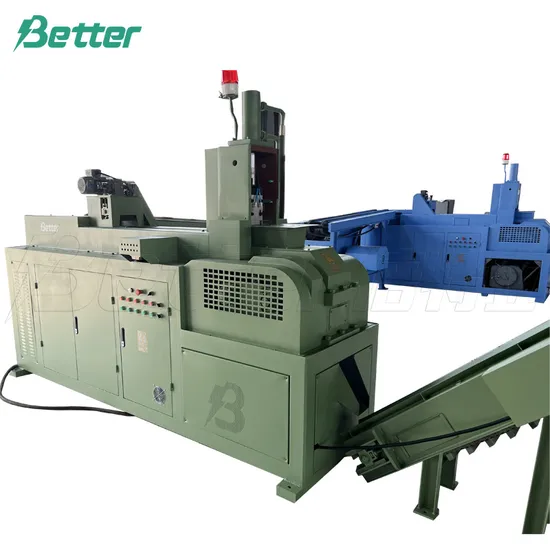

Lead ingot cutting machine
1. Characteristic of Cold Rolling Lead Balls Cutter
1.1 The lead balls made by this lead ingot cold cutting machine is in good shape, close to spherical in shape, suitable for lead oxide mill.
1.2 This lead ingot cold cutting machine cuts the lead sheet into lead pellets at one time through a special rolling die. The molding is good and the failure rate is low.
1.3 This lead ingot cold cutting machine has good applicability for lead ingot and with low failure rate.
1.4 The total installed power of this lead ingot cold cutting machine is about 24 Kw, saving energy and electricity.
2. Technical requirements
2.1 The equipment is a brand new complete set of equipment, with reasonable structure, stable and durable, safe and reliable, simple operation, convenient maintenance.
2.2 The main parts of the equipment are made of high-quality materials, and the mechanical electronics and electrical components selected are well-known brands.
2.3 The equipment has well-developed mechanical transmission device, lubrication and filter device and electrical control system.
2.4 The design, manufacture and testing of the equipment and instruments shall comply with the ISO standard and the IEC standard. All units of measurement adopt the International System of Units (SI).
2.5 The equipment is capable of operating continuously for 24 hours under the rated load and ambient temperature ranging from -10 °C to 50 °C and relative humidity ≤90%, with stable performance.
2.6 Corresponding safety protection measures must be taken for the dangerous parts that may cause personal or equipment injury
2.7 The metal components of the equipment and instrument are treated with rust removal and paint except for the assembly surface and electroplated surface.
3. Main Technical Parameters of The Equipment
3.1 Scope of application of the equipment:
Scope of application of lead ingot: electrolytic lead, refined lead, lead ingot dimension length≤650mm, width≤125mm, thickness≤90mm
Lead ingot weight: 40-50kg;
3.2 Design and production capacity of the equipment
Equipment capacity: ≥ 2.3T / hour (lead ingot weight will affect the actual situation).
Product quality (qualified rate) requirements: lead ball weight 110 ± 10g, accounting for about 90%;
3.3 Requirements for the total power, water, electricity and compressed air of the equipment:
Power: 3 phase 5 lines AC380V, total installed power is about 24 kW;
Compressed air: pressure 0.55-0.65MPa; clean and dry air with flow >110L / min;
Cooling water: pure water flow rate >1 L/h
4. Main Composition and Performance Requirements of the Equipment
4.1 Equipment composition

NO.	NAME	Remark
1	Material rack
2	hydraulic station
3	Lead ingot cold cutter
4	Lead ball conveyor
5	Electric control cabinet

4.2 Process Flow Description:
4.2.1 Material delivery → lead ingot transmission → cut into lead sheet → lead balls rolling cutter → particle delivery;
4.2.2 Power: Cut the lead ingot into lead sheet hydraulically; Mechanical rolling is adopted to make the lead sheet into evenly sized lead balls;
4.2.3 Control: It adopts Inovance PLC and human machine interface, automatic one-key control, whole-process detection, real-time monitoring;
4.2.4 The equipment comes with manual and automatic functions:
With interlock protection for Manual and Automatic state (fault automatic shutdown, motor overload protection, transmission blockage automatic shutdown), fault display;
4.2.5 Automatic startup process:
Choose lead ball silo first --- Start the horizontal conveyor (optional) --- Start the elevator--- Lead balls cutter. The lead strips are cut into sheets of similar thickness parallel to the center line of the ingot, and then uniform lead balls are made.
4.2.6 The automatic shutdown process is the opposite of the startup process.
4.2.7 The control system adopts Inovance PLC + Inovance human machine interface for centralized control, the operation mode is simple, the main electrical components adopt well-known brands, the pneumatic components adopt JELPC, the motor and the reducer adopt well-known brands in China.
4.3 Wearing parts list:

No.	Name	Quantity
1	upper slitter	1pc
2	lower slitter	1pc

4.4 Repair kit:

No.	Name	Quantity
1	Allen wrench	1 Set
2	Allen key 14	1pc
3	Allen key 12	1pc
4	12-inch trapper	1pc
5	Top rod disassembly tool	1 Set

4.5 Attached accessories

No.	Name	Quantity
1	Upper slitter	1pc
2	Lower slitter	1pc
3	Ejector pin	10pcs
4	Spring pin	10pcs
