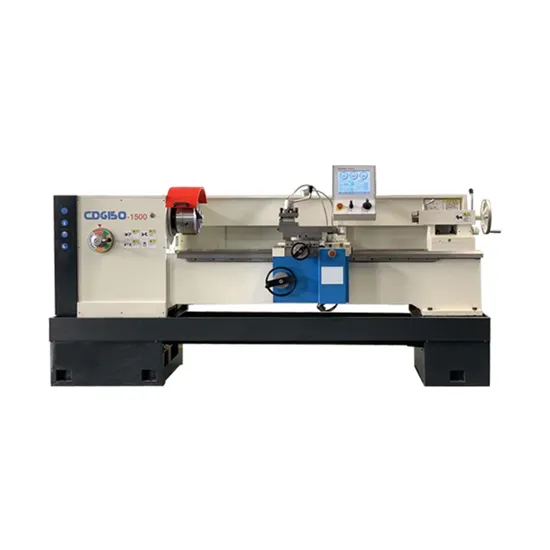

| ITEM | PARAMETER | UNIT | CD6140 | CD6150 |
| MACHINING | Max. swing diameter of bed | mm | 400 | 500 |
| Max.swing diameter of saddle | mm | 230 | 290 |
| Spindle center height | mm | 220 | 250 |
| Max. workpiece length | mm | 1000/1500/2000 | 1000/1500/2000 |
| Max. cutting length | mm | 950/1450/1950 | 950/1450/1950 |
| Bed width | mm | 400 | 400 |
| SPINDLE | Three jaw chuck specification | mm | 200 | 250 |
| Spindle speed grade | | 3-gear stepless | 3-gear stepless |
| Spindle speed range | rpm | 20-2000 | 16-1600 |
| Spindle hole diameter | mm | 58 | 82 |
| Spindle inner hole taper | mm | MT#6 | Metric 90 |
| Spindle head type | | C6 | C8 |
| SADDLE | Turret travel | mm | 150 | 150 |
| X axis travel | mm | 260 | 260 |
| Z axis travel | mm | 1000/1500/2000 | 1000/1500/2000 |
| TURRET | Workstation | | 4 | 4 |
| Tool size | mm | 25X25 | 25X25 |
| TAILSTOCK | Motion | | MANUAL | MANUAL |
| Sleeve moving distance | mm | 160 | 160 |
| Sleeve diameter | mm | 75 | 75 |
| Sleeve taper | | MT#5 | MT#5 |
| FEED | X/Z axis fast move speed | mm/min | 2000/1000 | 2000/1000 |
| X axis feed speed | mm/min | 15-1000 | 15-1000 |
| Z axis feed speed | mm/min | 30-2000 | 30-2000 |
| Turret handwheel move distance per turn/per scale | mm/mm | 5/0.1 | 5/0.1 |
| Middle pallet handwheel move distance per turn/per scale | mm/mm | 5/0.02 | 5/0.02 |
| Big pallet handwheel move distance per turn/per scale | mm/mm | 30/0.1 | 30/0.1 |
| SCREW THREAD | Range of metric thread | mm | 0.25-12 | 0.25-12 |
| Range of inch threads | T.P.I. | 80-1/4 | 80-1/4 |
| Range of modular thread | M.P. | 0.125-4 | 0.125-4 |
| Range of pitch thread | D.P. | 160-1/8 | 160-1/8 |
| MOTOR | Spindle servo motor power | kW | 3.7 | 5.5 |
| Pump motor power | kW | 0.09 | 0.09 |
| Feed servo motor power | kW | 1.5 | 1.5 |
| TRIANGLE BELT | Model | | XPA2032 | XPA2032 |
| Quantity | pcs | 6 | 6 |
| OTHERS | Length | mm | 2430/2930/3430 | 2430/2930/3430 |
| Width*Height | mm | 1230X1540 | 1230X1540 |
| Net Weight | kg | 2100/2250/2400 | 2170/2320/2470 |
