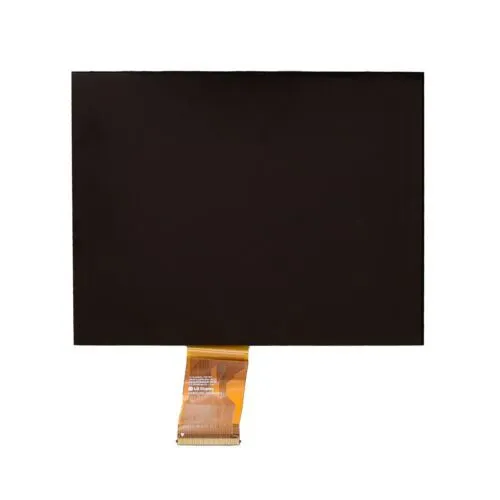

8.4 Inch La084X01 (SL) (01) La084X01 (SL) (02) LCD Touch Screen Assembly

Product Description

Detailed Photos
Product Parameters

Model	LA084
Screen Structure	ITO Film and ITO Glass are bonded together, with DOT points in the middle for isolation
Connector	2.54mm pitch socket, standard AMP87499-9
Touch media	fingers, gloved hands, pens, credit cards, etc.
Screen thickness	1mm-5mm
Screen size	5 inches-22 inches
Resolution	4096x4096
Response time	less than 8 milliseconds (finger input)
Touch strength	15-40gr, use silicone grease with a hardness of 600 and a diameter of 16mm
Conversion speed	less than 20ms
Position accuracy	standard deviation less than 2 mm
M Touch Density	Touch resolution 4096x4096 touch points
Screen error	less than 1.5%
Supply voltage	DC+5V
Screen resistance	200Ω-50Ω (between X1-X2); 200Ω~500Ω (between Y1-Y2)
Insulation resistance	greater than 20MΩ at DC25VStatic protection: can withstand 20 discharges of 15 kV randomly distributed on the screen surface (per IEC 801-2; 150pF and 150Ω)
Light transmittance	75-85% (when the wavelength is 550 nanometers)
Working temperature	-20ºC-60ºC
Storage temperature	-25ºC-70ºC
Anti-destruction	3-12mm optical glass fully tempered by special process is used as the base material. Use 1 pound at a height of 130cm to make it fall freely to the center point of the glass without breaking the glass.
Sealing characteristics	Highly sealed material tightly seals the filter device, frame and anti-riot glass to prevent liquid leakage
Working temperature	-20~70°C
Storage temperature	-40~85°C
Working humidity	90%RH at 40ºC (no condensation)
Storage humidity	90%RH at 40ºC (no condensation)
Sealing	meets NEMA4 and IP65 standards
High temperature storage	80ºC test for 240 hours
Low temperature storage	-25ºC test for 240 hours
Durability	Mohs hardness 3H (according to ATSM D3363 standard)
Lifespan	single touch more than 5 million times

Company Profile
Applications
Certifications
Packaging & Shipping
FAQ

Q1: What the advantage of your company?
A1: We are a high-tech manufacturer, which provide one-stop LCD solution, in the technology side, The company has passed ISO9001 quality system and ISO14001 environmental management system. Many of the company's products have passed authoritative certifications such as CE, FCC, CB, RoHS, UL, and HDMI. We offer OEM, ODM, welcome to discuss any new item with us.
Q2: What is the products application?
A2: The products can be widely applied to the fields of HMI, Handheld Terminals, Medical Equipment, Instruments and Apparatus, Smart Home Equipment, Shopping Machine, Vehicle Display and AOI, etc.
Q3: Which items can be customized?
A3: LCD module size, FPC, interface, Brightness, Logo, Resolution, etc.
Q4:How to control the quality of products?
A4: We a professional QC team, and all products are 100% inspected before shipment.

---
