US$70,000.00-100,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Maximum Slewing Diameter
500mm
Maximum Machining Diameter
400mm
Ys Axis Maximum Travel
50mm
X/Z Axis Rapid Traverse Speed
30m/Min
X-Axis, Z-Axis, Y-Axis Servo Motor
1800W
Transport Package
The Two Sides Negotiate Logistics.
Packaging & Delivery
Package Size
260.00cm * 180.00cm * 185.00cm
Package Gross Weight
4500.000kg
Product Description
Product Description
Technical Characteristics
|
| Maximum turning diameter | 750(mm) |
| Max.swing over the bed | 780(mm) |
| X-axis motion | 450(mm) |
| Z-axis motion | 650(mm) |
| Max.turning length | 230(mm) |
| Max.workpiece length | 460(mm) |
| Best roughness | 0,4,0,6 |
| Max.spindle rotation speed | 3500(r/min) |
| Diameter of bore in spindle | 60(mm) |
| Main drive capacity | 11/15(kW) |
| Max.operating current | 63(A) |
| Capstan | Hydraulic |
| Quantity of capstan position | 12 |
| Type of mandrel body | VDI20 |
| CNC system | Fanuc Oi-TF |
| Lathe dimensions | Length 2600(mm),Width 1800(mm),Height 1850(mm) |
| Weight | 4500 (kg) |
| Volume of tank for dielectric | 120(1) |
| Volume of tank for scrap | 100(I) |
| Dimensions of tank for scrap | Length 650(mm),Width 1250(mm),Height 1600(mm) |
| Weight of tank for scrap | 185(kg) |
*Due to the constant updating and changing process of products,the parameters in this table can only be used as a reference,the latest parameters,please communicate with the seller.

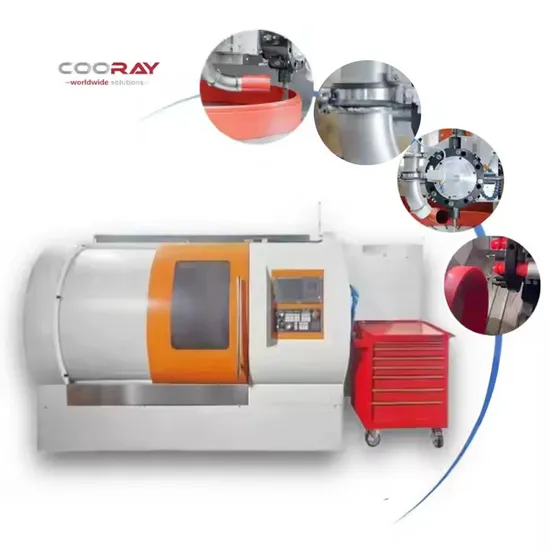

The company produces a horizontalspecial cNc sealing ring processing ma-chine. The machine adopts the overall45° inclined bed design and linear balltrack to electively ensure the accuracyor the machine tool. All drive motors aremade of original servo motors, specialsealing ring turing lixtures and servoturret, which can meet the processingaccuracy requirements of non-standardseals of any material, any specificationand any size. At the same time, it isequipped with knife sharpener, crusherand chip absorber
>>
