High Precision Plastic Injection Molder

Product Description

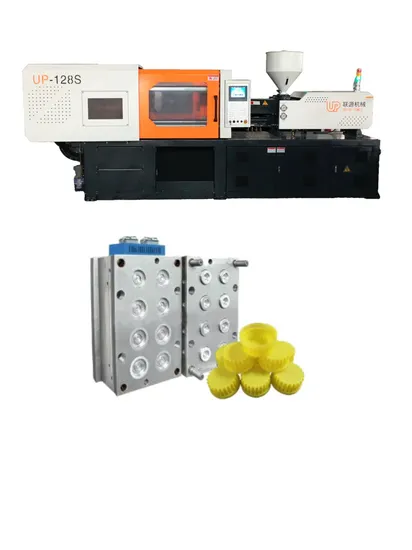

UP-128 Injection Molding Machine
UP-128 Injection Molding Machine
Features:
Servo type injection molding machine
More space between pull rods
Central clamping structure
Famous components
Servo motor energy saving
Low noise, 0.05 second fast response
High precision, stability, and long service life
T-groove pressing plate
Rich spare parts
Better price
Low water consumption
Low maintenance electrical and hydraulic
Reduce power consumption by up to 80%
Flow and pressure output control sensor
Clamping Device:
Optimized formwork design
High rigidity and large pull rod spacing
Platen Layout based on Europe
New ejection system design
Hydraulic drive gear type mold adjusting mechanism
Mechanical safety interlock device
Injection Device:
High-quality linear motion guide
High Speed⪻essure injection structure
Double nozzle cylinder
Special screw barrel design
Hydraulic System:
Dual proportional composite valve
Imported high-quality water pump
Can be equipped with world-famous servo hydraulic system
Servo system with accurate feedback control
For more information, contact Ningbo Union Power Machinery Co., Ltd.

Technical Parameters	Model UP-128
Injection Unit	A	B	C
Screw diameter (mm)	40	42	45
Shot Volume (cm3)	227	251	288
Injection weight (g)	204	1440	1636
injection pressure (Mpa)	203	226	259
Screw speed (rmp)	0-200
Clamping Unit
Clamping force (KN)	1280
Open stroke (mm)	360
Max Mold height (mm)	400
Min Mold height (mm)	150
Space between tie bars(mm)	420x380
Ejector force (KN)	38
Ejector stroke (mm)	100
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	11(11.5)
Heating power (KW)	7.3
Machine dimension (M)	4.3x1.15x1.85
Machine weight (T)	3.6
Oiltank cubage (L)	200

---
