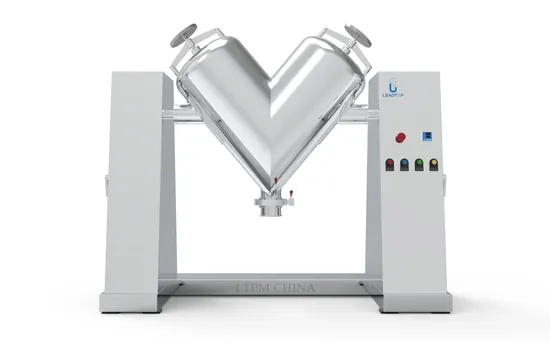

Dry Powder Mixing V Type Mixer Machine

US$4,000.00-20,000.00 1 Set (MOQ)

Basic Info.

Model NO.
VH-Series
Application
Granules, Powder, Powder, Granules, 3D Pharmaceutical Mixer
Application Area
Chemical, Daily Chemical, Food, Pharmaceutical, Pharmaceutical
Certification
CE, ISO, CE, ISO, GOST, Soncap, CCC, API, 3D Pharmaceutical Mixer
Condition
New, New
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
5-4000L
Safety Features
Overload Protection
Speed Control
Single Speed
Speed Range
< 30 R/min
Stirring Type
Diving
Temperature Control
With Heating
Working
Convection Mixer, High Speed Mixer
Mixer Type
Powder Mixer
Layout Type
Verticle
Operating Type
Cycle Operating
Warranty
5 Years
Mixing Drum Shape
3D Pharmaceutical Mixer
Item
Pharmaceutical Mixer
Voltage
380V 50Hz Three Phase (Optional)
Speed of Driving Shaft(R/Min)
0-8
Total Weight(Kg)
500
Max Loading Capacity(Kg)
100
Overall Dimensions(mm)
1000*1400*1200
Max Loading Capacity(L)
160
Barrel Capacity
100
Brand
Ltpm China
Power Kw
1.5
Transport Package
Wooden Case
Specification
CE, GMP, SGS, etc.
Trademark
LTPM China
Origin
Zhejiang
HS Code
84743900
Production Capacity
25-100 Sets/Month

Product Description

Application:
The mixer is used for mixing the dry material grains in the medical, chemical, food, metallurgical and other industries.
The mixing barrel structure is unique. The mixing efficiency is high. There is no corner that can not be reached. The barrel uses the stainless steel and its internal and external walls are polished. The outside appearance is beautiful. The mixing is uniform, with wide application. The mixer meets GMP standard.


Feature:

1. It is used to mix the dry-powder, granular materials with good liquidity.
2. It consists of two asymmetric cylinders. The materials can flow as vertical and horizontal direction. The mixing uniformity will be above 99%.
3. It adopts vacuum feeding under sealing state. There's no driving structure inside and be clean, no dead corner in according with GMP standard.


Spec\item		 Total volume L Working cpacity L Working capacity kg Rotating speed rpm Power kw Weight kg
VH-50 50 25 15 25 0.55 500
VH-150 150 75 45 20 0.75 650
VH-300 300 150 90 20 1.1 820
VH-500 500 250 150 18 1.5 1250
VH-1000 1000 500 300 15 3 1800
VH-1500 1500 750 450 12 4 2100
VH-2000 2000 1000 600 12 5.5 2450
VH-3000 3000 1500 900 9 5.5 2980
VH-4000 4000 2000 1200 9 7.5 3300
VH-5000 5000 2500 1500 8 7.5 3880
VH-6000 6000 3000 1800 8 11 4550
VH-8000 8000 4000 2400 6 15 5200
VH-10000 10000 5000 3000 6 18.5 6000

Q: What price terms you offer? A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes,we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province.
Just let us know your schedule in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
