Product Description
Product Description

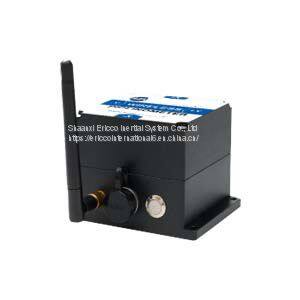

ER-TS-22800 Feature:
1. Accuracy: 0.005°, resolution: 0.0008°;
2. Measurement range: ± 30°;
3. Volume (94*74*64mm) (customizable).
ER-TS-22800 protocol is a wireless tilt sensor with ultra-low power consumption, small size and high accuracy, for users without power supply conditions or real-time dynamic measurement of object attitude Angle industry applications. Powered by lithium battery, based on the Internet of Things technology Bluetooth, Zigbee (optional) wireless transmission technology, the use of industrial-grade MCU, triple-proof PCB boards, imported cables, wide-temperature metal shell and other measures to improve the product’s industrial level, good long-term stability and zero drift small, Low power sleep mode can be automatically entered, thus getting rid of the dependence on the use environment.
Compact product structure, precision design, for temperature and linearity compensation again, Integrated with short circuit, instant high pressure, polarity, surge and other comprehensive protection functions, simple and easy to use, and wireless digital signal transmission mode eliminates the tedious wiring brought by long cable transmission, noise interference; Industrial-grade design has extremely high measurement accuracy and anti-interference ability, wireless sensor nodes can form huge wireless networks, supporting thousands of monitoring points for simultaneous inclination monitoring, supporting the professional computer software, no need for field survey, real-time data measurement and record the state of the measured object; Suitable for the industrial site, old dilapidated houses, ancient buildings, civil engineering, various tower tilt deformation remote real-time monitoring and analysis of the needs of the safety monitoring system.
Product property
Biaxial monitoring (uniaxial optional)
Measurement Range: ± 30°
Accuracy: 0.005°, resolution: 0.0008°
Volume (94*74*64mm) (customizable)
Ultra-low power consumption
Built-in rechargeable lithium battery power supply
Wide temperature work:-40~+ 85℃
IP67, protection level
Product application
Billboard monitoring
Bridge construction
Cloud platform leveling
Ship attitude measurement
High Speed Rail Roadbed Tunnel Monitoring
Satellite solar antenna positioning
Medical equipment
Various engineering machinery angle control
>>
