Z-Sun Plastic Bottle Nut Food Packing Line Bottle Unscrambler

Product Description

Product Description
Automatic bottle unscrambler is used for sorting disordered polyester or PET bottles. The scattered and disordered bottles are sent to the bottle storage circle of the bottle unscrambler by the elevator. Positioning Through the function of the bottle turning device, the bottles are sorted so that the mouth of the bottle is upright, and are output by the air conveying bottle system to enter the next process.
The machine outer cylinder, rotating cylinder and parts in contact with the bottle are made of stainless steel AISI304. The frame part is welded by high-quality carbon steel, and the surface is treated with anti-rust and sprayed.
The bearing adopts Harbin two-way thrust bearing, which is a domestic first-tier manufacturer, and does not need maintenance for long-term operation.
The cylinder body adopts a closed structure to prevent dust from intruding.
There are two removable covers on the top of the barrel for easy maintenance and cleaning .
It is equipped with a mechanism for removing damaged bottles and deformed bottles, and usually does not need to be shut down for manual cleaning. If a large number of deformed and abnormally sized bottles cause blockage of the drop slot, the detection switch inside the machine will send out an alarm signal and stop the machine. Operators can dredge according to the fault indication on the electric control cabinet.
Product advantages
1.The whole machine is made of SUS304 stainless steel, which meets the food industry standard.
2.The design of the equipment is scientific and reasonable, and the structure is exquisite and compact, which saves space compared with other equipment in the same industry
3.The energy consumption is small, the power of the whole machine is not more than 3KW, and it is the first in China not to use compressed air , which not only saves energy but also avoids the secondary pollution of the bottle by unclean air
4.The damage rate is low. The damage rate of the bottle unscrambler produced by our company can reach less than 5/10,000. If the customer's bottle is not damaged or deformed, it can reach less than 1/10,000, which is much higher than the industry's 5/1000.
5.It can be applied to a variety of bottle types, and the bottle type can be changed with simple adjustments. The operation is simple and does not require professionals.
6. High production efficiency, compared with other similar products in China, with the same size and specifications, the output is increased by 30%.
Detailed Photos

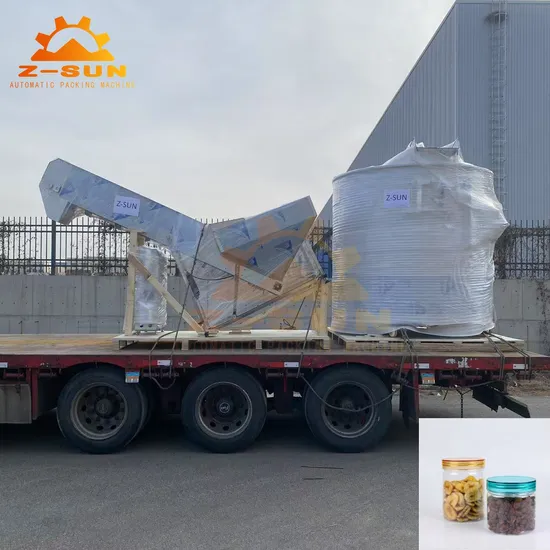

Product Image
Partial Detail Drawing
The outlet bottle pressing plate ensures smooth bottle conveying.
Outlet valve, self adsorption connection, automatic stop for bottle jamming, valve open to avoid bottle breakage.
Export anti clogging bottle detection, automatic opening, control equipment alarm shutdown, convenient fault resolution, and fast processing. Utility model patents.
The bottom of the bottle holder is adjustable, suitable for various bottle types. The nylon guide strip at the bottle opening reduces scratches on the bottle.
Adjust the position display of the installation position for easy memory adjustment. According to the bottle type, adjust the mechanism and accurately record the position for easy next operation. Patent for utility model.

Product Parameters
Technical Parameters

Type	LC-PMBM-120	LC-PMBM-160	LC-PMBM-200	LC-PMBM-240	LC-PMBM-260	LC-PMBM-280	LC-PMBM-300	Non-standard(OEM)
Host size(mm)	∅1200X1700	∅1600X1700	∅2000X1700	∅2400X2000	∅2600X2000	∅2800X2000	∅3000X2000	Based on bottle type
Bottle size(mm)	∅40-80,H50-220	40-80,H50-220	∅40-120,H50-350	∅40-150,H80-350	∅40-180 H80-350	∅40-180 H80-350	∅40-180 H80-350	Based on bottle type
Speed(bpm)	100-200	100-200	100-300	100-350	100-400	100-600	100-650	Based on bottle type
Power supply	220V,1.8Kw	220V,1.8Kw	220V,1.8Kw	220V,1.8Kw	220V,1.8Kw	220V,1.8Kw	220V,1.8Kw	Customized
