600tex Water-Swellable Glass Roving Fiberglass

Product Description

600Tex Water-Swellable Glass Roving
It is 600Tex fiberglass roving made in the furnace with special treatment of water blocking coating, so it swells instantly on contact with water. It has dual functions of high strength and excellent water swellable. It is usually as the core of cables and optical cable. Compared with traditional technics using gels, greases and tapes for dry cable, it is more cost-effective.
Linear density: 600Tex
Weight: 8~9kg/bobbin
Packing: by pallet
The bobbin information and loading information are as follows:
600tex
Diameter of core: 94mm Outer diameter of bobbin: 220mm
Bobbin Height: 220mm Thread length: 12600m
Net weight: around 8.7kg/bobbin Gross Weight: around 9.14kg/bobbin
Loading Information:
Play tray with honeycomb plate, 25rolls each layer, pallet size: 1.14x1.14x0.14m
Method 1: 5layers/pallet
Pallet size of 5 layers: 1.14x1.14x1.4m
One 20'GP can load: 10pallates (25rolls/layer x 5layers/pallet = 125rolls/pallet),
Totally net weight: around 10.9tons
Totally gross weight: around 11.6tons
Method 2: 5layers/pallet + 3layers/pallet
Pallet size of 3layers: 1.14x1.14x0.86m
Pallet size of 5layers: 1.14x1.14x1.3m
One 20'GP can load about: 10pallets(3layers)+10pallets(5layers),
Totally net weight: 17.4tons
Totally gross weight: 18.7tons

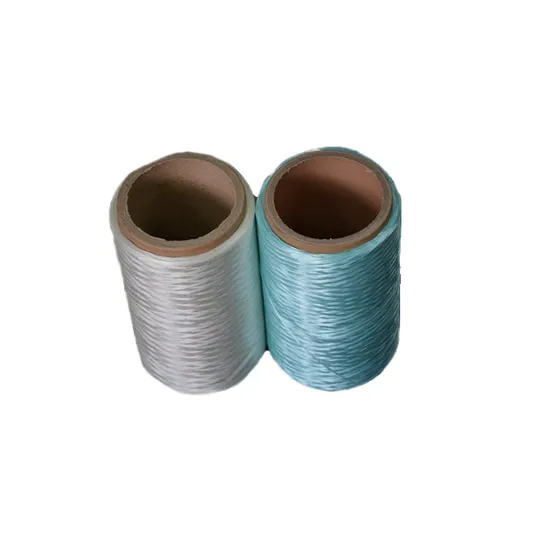

Product picture:
FAQ Q1: Why choose us? We have over 20 years' experience in the fiberglass industry . Excellent and stable quality with best cost performance. Our products have been known and accepted by more and more clients from all the world. Q2: What kind of payments do you support? Various payment term available Timely delivery guaranteed, T/T, L/C, Western Union, PayPal & Cash are accepted. Q3: Can you supply free samples? According to our company policy, we would like to offer you free samples with freight collect. we just charge the samples based on EXW price. And we will return the samples fee according the order. Q4: Can you offer customized service? Yes, we have our own cooperated factory; OEM and ODM are both welcomed. we make it perfect for you. Q5: How long is your delivery time? Samples: about 3-7 days. Generally 20-30 days for mass production after sample confirmed and the receipt of PO or deposit. Q6:Can I visit your factory? Welcome your visit. Please try to contact our sales representative first by email or phone. We will make the appointment and the most reasonable planning for your transportation

---
