Product Introduction

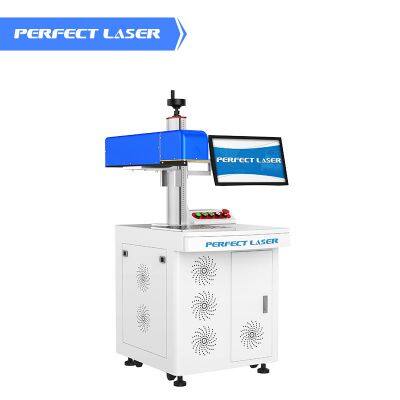

Perfect Laser has innovated out the first-class marking technology, it can work on sculptured surface without defocus. 3d laser marking machine adopts German IPG fiber laser technology, while maintaining the excellent beam quality, 3d laser marking machine using the front focus technology, dynamic focus, so that after the focus of the spot closer, faster, better results for a wide range of multi-level marking. The 3d fiber laser engraver can work on sculptured surface without defocus.In addition, this machine can also be customized closed enclosure, more energy-saving and environmental protection.
Product Features
1. This 3d laser marking machine adopts the German IPG fiber laser, the beam quality of the 3d fiber laser engraver is much better than the traditional, the 3d laser marking spot is smaller and more suitable for precision fine marking.
2. Adopt the US import scanning system and scanning head, infrared focusing system (optional) without measuring the focal length, make work more convenient.
3. The spot quality of the 3d fiber laser engraver is good, power stability, the service life is more than 100,000 hours.
4. Free of Maintenance.
5. High precision of 3D positioning technology, high-speed focusing and scanning system, short pulse, high-peak power and HPRF (High Pulse Repetition Frequency). The work efficiency of the 3d fiber laser engraver is faster than similar models.
6. The Software control system of the fiber laser metal engraving machine can automatically calculate the arc radian and adjust the focal length.
7. The fiber laser metal engraving machine can be marked on multi-level large format,on the three-dimensional surface, on the plane, according to the need to configure various types of lasers.
8. High Photoelectric conversion rate, up to 30%, the whole power less than 800W, saving energy consumption.
9. Friendly operation interface, it is suit for many file formats, such as dxf, plt, cnc, step, iges, etc.
10. High electro-optic conversion efficiency, long life and easy maintenance.
11. Fast marking speed and high processing efficiency.
Application
1. Many type of metals
Gold, copper, aluminum, stainless steel, chrome, Brass .etc
2. Alloy and Metal oxides
3. Some non-metallic materials
Silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, Printing ink Plating, Spraying, Coating film and special surface treatment.
4.Can be customized to add a closed cover, more energy saving and environmental protection.
Technical Data
Model
| PEDB-400F 3D Laser Marking Machine
|
Laser
| Laser Source
| Imported Fiber laser
|
Wavelength
| 1064nm
|
Max. Marking
Area (mm)
| 100×100
×20
| 200×200
×40
| 300×300
×60
| 400×400
×60
| 500×500
×60
| 600×600
×120
|
Best Suitable laser Power
| 20W
|
|
|
|
|
|
|
|
|
|
|
|
|
30W
|
|
|
|
|
|
|
|
|
|
|
|
|
50W
|
|
|
|
|
|
|
|
|
|
|
|
|
60W
|
|
|
|
|
|
|
|
|
|
|
|
|
100W
|
|
|
|
|
|
|
|
|
|
|
|
|
Beam quality M2
| ＜1.2
|
Pulse Repeatable Frequency
| 10kHz~200kHz
|
Cooling Method
| Air cooling
|
Process
| Marking way
| XYZ Triaxial dynamic focusing
|
Focusing range
| ≤±30mm
|
highest marking speed
| 350 character/s
|
Repeat marking accuracy
| 8urad
|
The Whole Machine
| Operating Ambient Temperature
| Temperature：10℃~35℃ Humidity：5%~75%
|
Power Demand
| Single phase AC110V/220V 10A
|
>>
