| US$8,000.00-12,000.00 | 1 Piece (MOQ) |

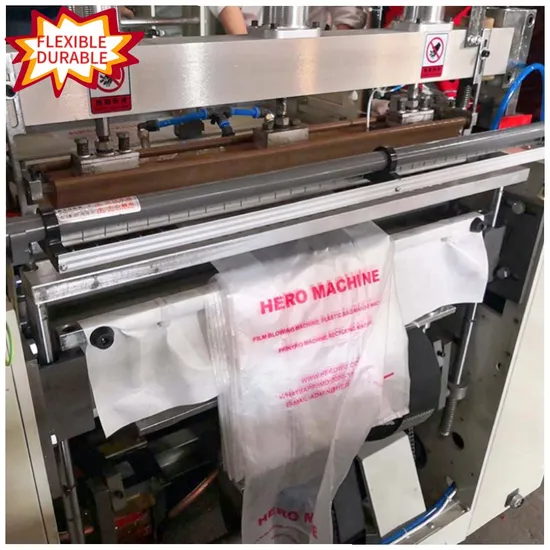

| HERO MACHINE---SINCE 1985 Add:Shangwang Industry Area Ruian Wenzhou,China fully automatic poly plastic shopping bag making machine price in pakistan We already sold to these country,if you are in this COUNTRY,you can go to my customer factory to check our machine America:America,Canada,Mexico,Argentina,Brazil,Chile,Ecuador,Paraguay,Colombia,Peru Asia:Korea,Malaysia,India,Thailand,Bangladeshi,Philippines,Pakistan,Turkmenistan,Azerbaijan,Armenia,Indonesia Middle East:Iran,Saudi Arabia,Syrian,Jordan,Lebanon,Palestine,Kosovo European:Russia,Ukraine,Portugal,Italy,Belarus,Poland,England,Bulgaria,Greece,Albania,Estonia,Lithuania,Sweden,Latvia Africa:Algeria,Nigeria,Egypt,Tunisia,Libya,Sudan,South Africa,Kenya,Morocco, Australia ETC Youtube Video website: http://herowu.en.made-in-china.com We Have lots of kind plastic bag making machine, The following is sample picture: Common unwinding 1. Unwinding adopt common loading , max diameter of raw rolling material is φ600mm 2. Adopt magnetic powder tension control. Manual adjust the tension. 3. Unwinding shaft is heavy-chain plug axle 4. Unwinding with EPC Top-folding continuously sealing device. 1. Top-folding continuously sealing, the width size of bag not be limited, 2. Inside heating wire sealing, which suitfor full colours of bag. 3. Adopt import heat wire, steady warming, hard sealing 4. Double adhesive tape device for side sealing bag 5. The continuous sealing device is suitable to thickness of one layer film ≤0.06m/layer Top folding and round bottom gusset device: 1.14mm high hardness steel plate top folding and round bottom guset 2. Special guide plate and roller ,which offer less friction fold 3. With flat press roller 4. More thin round disc bottom gusset 5. U style mould bottom molding Soft loop handle bag device 1. Double layer unwinder 2. The whole type steel plate base, and special support bag structure. 3. High quality oval sealing knife from up and down 4. Hydraulic skew angle feeding soft loop 5. 90 degree turnabout gear rotary soft loop 6. Special oblique drag style rotary soft loop 7. Micro-motor driver soft loop handle go forward and back off 8. Centralize style air control system Patch handle bag device 1. Pneumatic control feeding 2. Turnabout cylinder control patch 3. With flying knife cutting fast 4. Special pattern sealing mould 5. Micro-motor driver patch go forward and back off 6. Base mould of patch device adopt whole steel plate Heat sealing handle punch 1. High hardness gear steel smooth pillar 2. Air outside waster film blower hopper 3. The whole style rotary 180 degree 4. High hardness alloy aluminium puncher base plate 5. Hot handle puncher 20X90m 6. Stroke of puncher :25mm X 2 7. Temperature of puncher 0-300 degree Photocell of printing and preheating : 1. Printing image tracking adopts photocell from SICK FROM GERMANY 2. The photocell of priting together with high technical computer , 3. The pre-sealing knife is designed specially of bottom four layers film, high speed produce bag 4. Double sides heating, double cylinder driven, strong for gusing, and strong for sealing . Side sealing parts: 1. side sealing knife principal axis transmission belt cylinder lifting and down. 2. Side sealing knife with water cycle cooling system. 3. Side sealing knife adopt best of breed material, high temperature heating ametabolic. 4. Side sealing knife with concealed style heating tube, temperature steady 5. Turnover heavy side sealing knife, humanism structure design, turn fast, easy to cleaning. Convey vollect device: 1. Collect table adopt automatic collecting bag feeding (intermission model and continuum model) 2. When the bag reach to a certainty quantity, collect table will move automatically, and continuo producing. 3. Collect table is driven by Micro-motor reducing servo Control parts: 1. The main control panel real-display touch screen with Taiwan eview screen 2. Main motor adopt 1.5kw reducer(with braket), driven by the 1.5 kw inverter used YASKAWA FROM JAPAN 4. Driver control program of the whole machine by PLC-panasonic-JAPAN control. 5. Back feeding adopt traction is driven by inverter from JAPAN-YASKAWA 6. Bag feeding is driven by 3 kw servo motor from JAPAN-YASKAW 7. All of pneumatic parts and air cylinders of whole machine all from Shanko-Taiwan 8.. ALL heating adopot AC contactor 9.. Adopt dual intelligent temperature controller 10. The bag making of whole machine operate from inner of machine Technical data: Model : ZD800 Bag style: soft loop handle bag, poly draw handle bag, patch handle bag top folden die cut bag, Orientation: from right to left Width size of unwinding: 800mm( double ) Diameter of unwinding : 600mm(max ) Length size of bag making: 250-750mm(if want bigger size that should order) Width size of bag making : 250-600mm Top folden: 50-75mm Bottom folden : 30-60mm Thickness of film : HDPE 0.03-0.06mm LDPE 0.04-0.08mm Length size of loop handle tape: 360mm Thickness of loop handle tape: 0.08-0.25mm Width size of draw rope tape : 25mm*2(double layer) Thickness of draw rope tape: 0.04-0.15mm Width size of patch bag: 150mm Thickness of patch bag: 0.11-0.15mm*2(double layers) Speed of bag making: soft loop handle bag 60 pcs/min Poly draw handle bag 70 pcs/min Patch handle bag 60 pcs/min Die cut handle bag 75 pcs/min Total power: about 13KW Working noise : about 90db Outside of machine : 7800X3200X1850mm Weight of machine : 3500kg Air compressor : 7HP Spare parts follow machine: 1.A set of tools (a toolbox, a 10 # monkey wrench, a set of inside hexagonal wrench, two screwdrivers, a Vector. 8-10,12-14,7-19 leatherhead wrench each have one) 2.Trachea 4, 6,8 each three-meter, each have two4, 6, 8 tracheal tie-in. 3. High-temperature hot Teflon cloth 2 meters, a roll of high temperature rubberized fabric. 4. each heating tube two(heat cutting knife, soft loop handle, preheating,sticking) 5. Small type Proximity sensors two. 6. Small type magnetic contactor four 7. thermocouple 3 pcs. 8. Switch and knob each two. 9. Knife two boxes. 10. Solid state relay two. 11. One Instruction 12. A Instruction of correction , a Instruction of invertor, 13. Level foot plate 16pcs. 14.Power supply copper tie-in 4 pcs Q1:Are you a factory or trading company? A1: We are established in 1985, a actual factory and manufacturer in the line of printing&package machine for 20 years. Q2:Where is your factory located? How can I visit there? A2: Our factory is located in Rui'an City, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us! Q3: Which industries are widely used in of your machine? A3: Those are mainly used in making plastic bags and labels in the maket. Examples of stand up pouch, zipper pouch, plastic bag for dialy necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft carboard, etc. Q4: How about the payment term? A4: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery. Q5: What about your main market? A5: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries. Q6: How does your factory do regarding quality control? A6: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification. Q7:What about warranty and do the engineers available to overseas? A7: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you. Q8:What about the service after sale? A8: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem. |
