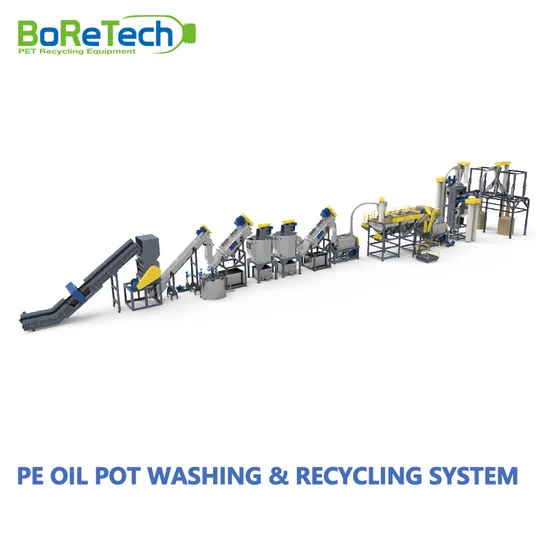

Waste Rigid and Flexible Plastics PE Oil Pot Recycling Washing System

Product Description

-Boretech Rigid Plastic Recycling System can process PP/HDPE hollowed plastic(≤2.5L),
with process design proven over the years. With a hot chemical washing module, the washing line can achieve better and more consistent quality for the end product.
-The entire washing line can be equipped with a DCS system and PLC control to minimize the usage of manpower.
-The washing line is also designed with a chemical water circulation system and an online rinse water circulation system to reduce carbon footprint.
-The washing line has a one-button start and stops design that makes it much easier on operation and maintenance.
Recycling Process Flowchart
Feeding---Crushing---Friction Washing & Drying---Hydro Washing---Friction Washing---Drying--- Rinsing---Drying--- Zig-zag Separation (optional)---Optical Sorting (optional)---Pneumatic conveying---Packing;
Parameters Sheet

Estimated Plant Parameters
Input Capacity (kg/h)	Required Area (m2)	Installed Power (Kw)	Required Water (kg/h)	Required Steam (kg/h)	Required Compressed Air(m3/min)	Manpower
500-1000	360	320	1.5-2	150	1	2-3

Production Consumption Table - A Average Energy Consumption per ton of Material Processed
Input Capacity (kg/h)	Electricity Consumption (kW·h)	Steam (Kg/H)	Washing Detergent (kg)	Water Consumption (ton)
0.5-1.0	220	150	5	1.5-2

*Data above are based on laboratory calculations; material composition and management will affect the actual usage.
BoReTech is an environmental equipment & plastic recycling enterprise which comes from Taiwan with 20 years experience for PET bottle,and other waste plastic recycle and 15 years experience for polyester staple fiber. Our plentiful manufacturing experience has become our prime backbone in waste plastic recycling plan, design and produce. Especially in PET bottle field, we provide not only whole recycling line or single machine but also operate manufacturing and sales in various kinds of recycled PET material and their upper and lower reaches practically. With those outstanding conditions, the equipment and project provided by us are verified by actual operation and the spirit of design is conform to operator's demand perfectly.

---
