High Precision and High Rigidity Swiss CNC Lathe Machine

Product Description

Product Description

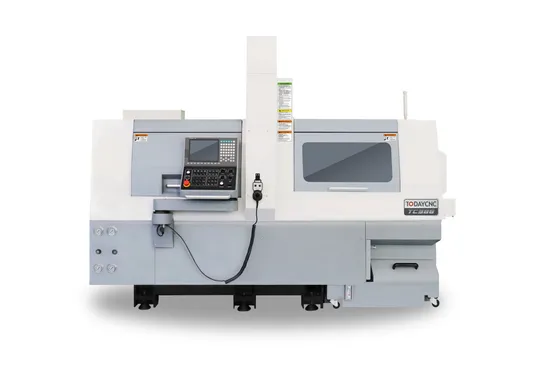

Model: TC386
System available: FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN etc.
Double spindle
6-axis function
Max machining diameter: 38mm
Motor spindle
Features
* Each axis uses 30 type P-precision roller guide rail and 32 type double nut C3 screw.* Built-in electric spindle,hydraulic clamping,ensure high precision machining.* Main spindle clamping is compatible with both Push forward and pull back modes, not necessary requires large diameter grinding materials.* Main spindle primary processing length is 320mm with guide bush.* Main spindle side milling adopts ER25+ER20 with 2.3 high-power motors, combined with the spindle hydraulic brake, to improve milling efficiency and rigidity.* Main spindle tool holder adopts rectangular-ambulatory-plane layout,reduce machine volume,enhance the rigidity of the tool holder structure, and achieve fast tool change speed. Layout
Case study

Product Parameters

Model			TC386-1
			6-axis,dual spindle
NC system			SYNTEC 220TB
Lathe rated power		kw	25
Machining range
Maximum machining diameter		mm	φ38
Maximum machining length (one-time clamping)With guide bush		mm	320
Maximum machining length (one-timeclamping)Non guide bush		mm	85
Main/sub spindle
Main spindle power		kw	10
Sub spindle power		kw	10
Main spindle max through hole dia		mm	φ42
Main/sub spindle rev speed		rpm	6000
Sub spindle max clamping dia		mm	φ38
Sub spindle max through hole dia		mm	φ42
Max tool installed qty		mm	30
Main spindle tool
OD Turning tool	Qty x Model		6*φ16+3*φ20
Side- Live tool	Qty x Model		3*ER20+1*ER25
	Drilling dia	mm	φ16
	Tapping/Threading die dia		M8
	Live tool rev speed	rpm	5000
	Live tool power	kw	2.3
End face fixed tool	Qty x Model		7*ER20
	Drilling dia	mm	φ13
	Tapping/Threading die dia		M10
Angular drilling head			--
Axial drilling and milling tool			--
Sub spingdle tool
OD Turning tool	Qty x Model	mm	2*φ16
End face fixed tool	Qty x Model	mm	5*ER20
	Drilling dia	mm	φ13
	Tapping/Threading die dia		M10
Side- Live tool	Qty x Model	mm	3*ER25
	Drilling dia	mm	φ16
	Tapping/Threading die dia		M8
	Live tool rev speed	rpm	5000
	Live tool power	kw	2.3
Angular drilling head		mm	--
Axial drilling and milling tool		mm	--
Rapid feed speed		m/min	18(X1) 24(X2/Y1/Y2/Z1/Z2)
Feed motor power		kw	1.7
The power capacity		kva	25
Air pressure device		mpa	0.6
Weight		kg	4800
Dimension		mm	3000*1450*2200

Customer visiting


After Sales Service
Service
Service and support are a top priority. Our engineers and after sales team are trained to provide uncompromising customer service and support.
Training policy
Pre-training is available at our factory freely for our clients, video or remote training can also be provided. We charge for local training on the basis of travel expense + man day.
Warranty policy
Warranty period: 12-month. It is free of charge if it is damaged under normal use during warranty period. If the equipment is damaged due to improper operation, we charge material fees within one year. After one year, it will charge material fees and Labor costs

Our advantages:
1.High quality/Reliable/Robust machines
2.Service and support are top priorities
3.Quickly response 7/24
4.Customized Machine According to Customer's Requirements
5.Integrated solution provider
6.More details please contact us, or send your drawings for professional recommendations
Company Profile


FAQ
1.What's the main products of your company?A: We specialized in Swiss-type CNC lathes for small, complex, precision metal parts processing.2.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
3.How can I choose the most suitable machines?A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
4.What is your leading time?A:Generally speaking, 1-3 month based on different quantity.
5.What's the Payment Terms?A: Our practice is T/T ,30% deposite ,70% balance before shipment.
6.What's the shipment Terms?A: By sea, by train, by truck, by air(metal parts samples).
7.What's the offering Terms?A:EXW/Shenzhen, FOB/Shenzhen, CIF/Shenzhen, CFR/shenzhen.
8.Where is your factory located? How can I visit there?A :Our company is located at Building A#, Xinhui industrial park, Tangtou, Shiyan, Baoan, Shenzhen, Guangdong, CN. We are warmly welcomed to visit us.

---
