Metal Waist and Back Assisted Exoskeleton for Workers

Product Description

Product Description

Prdoduct	Metal Waist/Back Assisted Work Exoskeleton
Model No.	PHES7
Product Features	Suitable for assisting in carrying heavy objects. Through ergonomic design, the weight of the objects being carried is transferred to the metal back support, which is an enhanced elastic waist and can effectively reduce the musculoskeletal load on the lower back. thereby reducing the risk of WMSDs
Boost Effect	20kgf
External Power	NO
Product Weight	≤3.5kg
Adjustment Method	Tool adjustment
Applicable BodyHeight	1.60m-1.85m
Applicable BodyWeight	40kg - 85kg
Product Life Cycle	500,000 frequency
Wearing Time	≤1Minute
Raw Material	Nylon, polyfiber, aluminum alloy, stainless steel
Warranty	Service Life-2 years (1 year warranty)
Package Size	85x25x16cm, 5.3kg

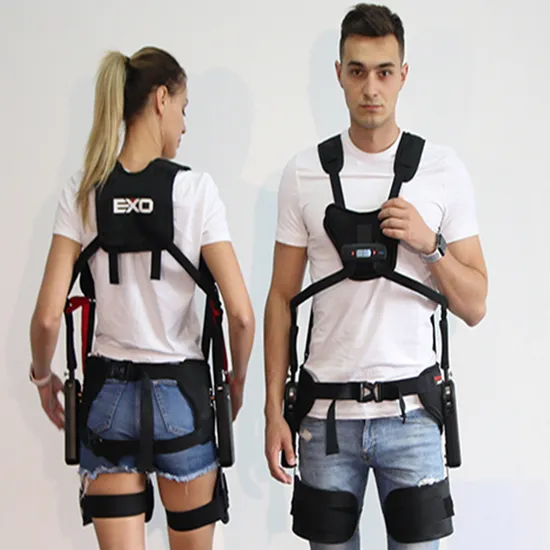

Metal Waist(Back)PHES7-Waist Assisted Exoskeleton
When the laborer needs to stay in the bending position for a long time, the spring maintains the supporting force, which makes the waist muscles more relaxed; when the laborer needs to straighten the waist or lift heavy objects, the stored energy (elastic force) pushes the human body upward, and the human waist Muscles use much less force than usual to get the job done.
Features & Advantages Wide shoulder strap design:to reduce stress on shoulders;
Stainless steel,high strength spring steel engineering plastics,aviation aluminum and other materials ;
Adjustable buckle design:safety,anti-slip,and adjustable;
The packing material is breathable/wateproof/wear-resistant/comfortable;
Leg srip;
Energy storage:can be switched off so as not to affect the normal operation;
Applicable Specifications
Object Weight within30kg
Wearer Weight 40-80kg
Wearer Height 155-185cm
Service Life-2 years(1 year warranty)
Maximum Assistance20kgf
Product Weight 3.5kg
