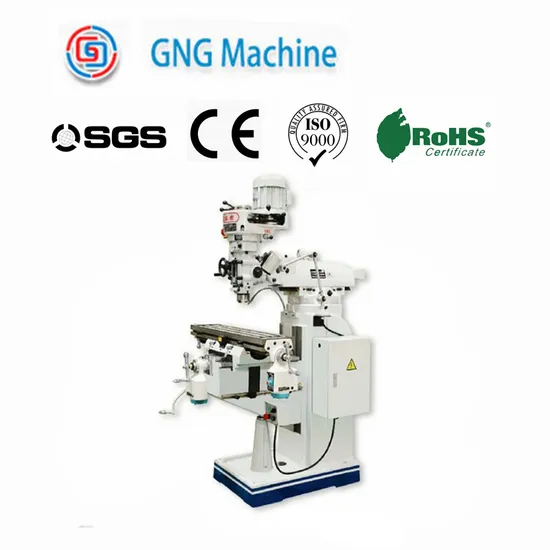

Electric Universal Turret Milling & Drilling Machine

Product Description

Min. Order Quantity: 1 Set/Sets
Port: Qingdao
Payment Terms: L/C, T/T
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: X6323B
Type: Universal
CNC or Not: Normal
Voltage: 380V
Power(W): 2250W
Dimension(L*W*H): 1400X1476X2030mm
Weight: 1060kgs
Certification: CE
Warranty: 12months
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
Table size 230X1246(9"X49")
Spindle hole taper R8 or ISO30/40
Spindle travel127
Universal milling machine X6323b
Table size: 230X1246(9"X49")
Long travel: 840mm
Cross travel: 305mm
Vertical travel: 350mm
T-slot number and size: 3X16
RAM travel: 315mm
Distance from spindle nose to table surface: 0-350mm
Spindle hole taper: STANDARD-R8, OPTIONAL ISO30/40
Spindle travel: 127mm
Spindle speed: Standard 16shift grade-50Hz 66-4540, 60Hz 80-5440
Optional variable - 60-4200
Auto quill feed: Three steps 0.04/0.08/0.15mm/revolution(0.0015"/0.003"/0.006")
Spindle motor: 2250W
Head swivel 90°
Head tilting 45°
Packing size: 1400X1476X2030mm
Gross weight 1060kgs

---
