Bestseller 1000W 1500W 2000W 3 in 1 Portable Handheld Fiber Laser Welding Machine for Laser Handheld Welder

Product Description

Product Parameters

RM-LW
Laser power :	2000W
Fiber length :	Standard configuration of 10 meters
Working mode :	Continuous/modulated pulse
Laser wavelength :	1070/1080nm
Welding speed :	0-120mm/s
Chiller :	Dual temperature and dual control constant temperature water tank
Working environment :	5-40 ° C humidity less than 70% without condensation 5-40°C
Applicable plate thickness :	0-12mm
Gap requirement :	0-2mm
Maximum power consumption :	<6.5KW
Working voltage :	220V/380V 50Hz
Weight :	80KG

Detailed Photos
Lightweight And Convenient
Small in size, light in weight, convenient for transportation and use, not limited by the venue
Good Perormance And Fast Speed
Stable performance, perfect welding quality, 5-10 times faster than traditional welding speed, can be formed in one go.

Easy To Operate
Touch screen, intelligent operating system, built-in process package, beginner training can be mastered in half an hour.

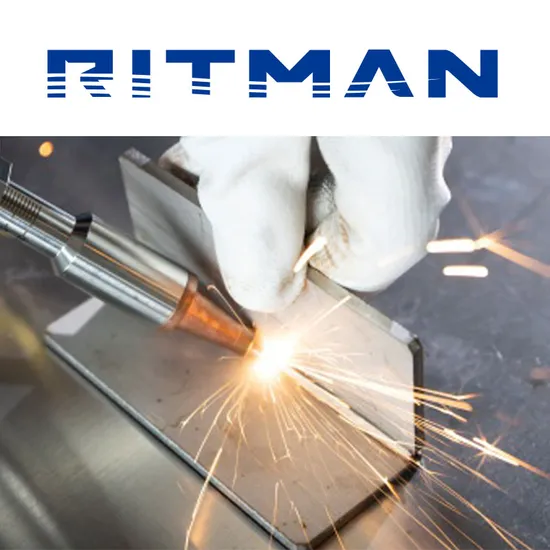

Handheld Welding Laser Head
Handheld welding laser head with ergonomic design and light weight can be operated easily and persist in working


Certifications
Company Profile
Xuzhou RITMAN Equipment Co., Ltd. is an intelligent equipment company under the Metavast group(Short name "RITMAN Intelligent ", English name"RITMAN"). RITMAN with the mission of "intelligent, digital, and trouble-free production", the company is a national high-tech enterprise and National-Level SRDI "Little Giant" Enterprise. Relying on strong R&D and production strength, the company focuses on the sales and service of laser cutting equipment. The main products include: laser plate cutting machine, laser tube cutting machine, large format customized laser cutting machine, laser plate & tube integrated machine, sheet coil laser cutting machine, 3D laser cutting machine, handheld laser welding machine, automated laser welding equipment, robot laser welding machine and other equipment. We are willing to work with our partners for mutual benefit and win-win situation!
After Sales Service
FAQ
Fault 1: Laser welding machine suddenly stops working
Solution: Check whether the 3A fuse of the pre-burning plate is good, check whether there is a power outage; check whether the laser cavity is leaking.
Fault 2: Laser intensity weakens during the operation of the laser welding machine
Solution: Check whether there is water seepage on the end face of the laser rod. If so, stop the machine, re-tighten the sealing O-ring, and clean and maintain the end face of the rod; focus lens is contaminated and cleaned and maintained. Check whether the lens is fixed well.
Fault 3: During the operation of the laser welding machine, the buzzer sounds, and soon the power is cut off, and the cooling water temperature exceeds the upper limit setting temperature
Solution: Check whether the external circulation water valve is open and whether the water channel is unobstructed.
Fault 4: Start (power), (cooling), the switch is not powered
Solution: The water pressure switch does not work, unplug the water supply pipe to exhaust, and then plug the water supply pipe
If it involves laser welding machine maintenance, troubleshooting and other after-sales issues, please contact Aowa Laser,
Fault 5: The laser welding machine light cannot be lit
Solution: Check whether the pre-combustion board has 220V; whether the 3A fuse is good or not, whether the xenon lamp is good or not
Fault 6: Laser welding machine, the light is on, and the (automatic) state does not emit light
Solution: Check whether the 3A fuse on the large printed board is good or not; whether the connector is loose, and whether the working voltage is >200V
Fault 7: Turn the (voltage adjustment) knob, and the voltmeter has no indication
Solution: The intelligent thyristor rectifier module is damaged, the voltage regulator board is faulty, whether the feedback button is closed, and whether the connecting line is loose.

---
