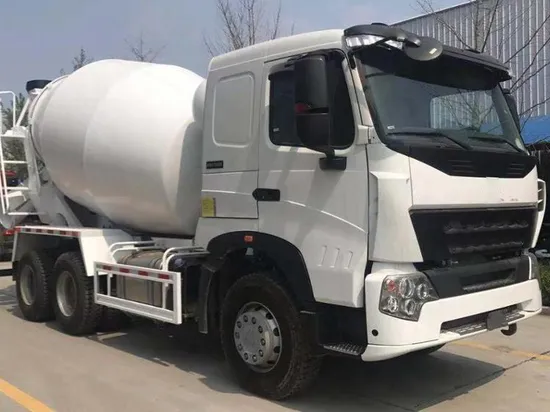

HOWO Rhd 180HP 4X2 5m3 Concrete Mixer Truck

Product Description

Brand New HOWO 4*2 4Cbm Concrete Mixer Truck With Parameters Product Description
1.Stirring device is mainly composed of mixing drum and auxiliary support components.< Mixing drum of concrete loaded containers,rotates the concrete along the blade spiral direction, constantly in the process of ascension and turning by mixing and stirring.in the process of feeding and transport, mixing barrel forward, concrete, moving along the blade into the discharge, the mixing tube inversion, the concrete to discharge along the blade.
2.Blade is the main components in the mixing plant, serious wear and tear or damage can lead to concrete mixing unevenly. In addition, the Angle of the blade if the design is not reasonable, still can make concrete segregation.
3.Cleaning system is the main purpose of cleaning the mixing barrel, is also sometimes used to transport on the way to dry mixing drum. Cleaning system and cooling effect to the hydraulic system. Totally enclosed device adopts rotary sealing technology, sealed the mixers in and out of the mouth, to solve the traditional mixing heavy evaporation, stratification of mortar,concrete material spilled, the series of problems such as driving safety.

Basic Information	Chassis model	ZZ1167
	Cab	Flat head ,single row with one berth
	Air condition	Yes
	Drive position	Right hand drive
	Over Dimensions(L×W×H)(mm)	7500*2500*3600
	Curb mass(kg)	7500
	Wheelbase(mm)	3800
	Drive style	4x2
	Tread(front/rear)(mm)	1860/1670
	Approach/Departure angle(°)	20/19
	Leaf-spring system	9/12+9
	Maximum speed (km/h)	80
Engine	Engine model	MC05.18-40,MAN technology
	Engine type	4 cylinder in line,Water cooling, four stroke ,Turbocharged Intercooled,High pressure common rail
	Manufacturer	China national heavy duty truck group
	Displacement(ml)/Power(HP)	4580/180
	Emission standard	Euro 4
	Fuel type	DIESEL
Gear box	HW90510C, 10 forward gear and 1 reverse gear
Front axle	3.2Tons
Rear axle	9Tons
Tyre	Tire specifications	9.00R20,radial tire
	Number of tyres	6+1 Spare tire
Mixing drum	Volume of mixer	4m3
	Rotating speed	6-12r/min
	Feed rate(m3/min)	≥3
	Discharge(m3/min)	≥2
	Discharge residual percentage	≤0.7
	Water supply system	Air pressure
Remark
