Product Description
Product Description

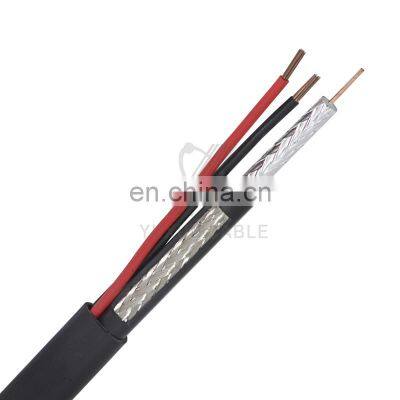

YUXUN High Transmitting BC /CCS Conductor CCTV RG59 Coaxial CableProduct Description
|
Physical Dimensions
|
RG59
| Conductor 1
| MATERIAL
| BC
|
CONSTRUCTION
| 1/0.81±0.008mm
|
Insulation 1
| MATERIAL
| Foamed PE
|
DIAMETER
| 3.7±0.15mm
|
Shield 1
| MATERIAL
| AL
|
CONSTRUCTION (Foil)
| 15mm
|
Shield 2
| MATERIAL
| CCAM
|
CONSTRUCTION (Braiding)
| 144/0.12±0.003mm
|
Jacket 1
| Diameter
| 6.0±0.2mm PVC
|
Power
| Conductor 2
| Material
| 11/0.3±0.04mm CCA
|
Insulation 2
| Diameter
| 2.0±0.05mm Red/Black PVC
|
Jacket 2
| Diameter
| 5.5±0.2mm PVC
|
Out Jacket
| Diameter
| 6.0±5.5mm PVC White
|
Company Information
Production Line
Our client
Packaging & Shipping
Certifications
FAQ
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.
Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
