High Homogeneity Fused Silica/Quartz/Synthetic Fused Silica/Hpfs Quartz/Synthetic Fused Silica 0A 0f 0c

Product Description

General Introduction: Synthetic Fused Silica ArF Grade, is a high purity synthetic amorphous silicon dioxide manufactured by flame hydrolysis. The noncrystalline, colorless, silica glass combines a very low thermal expansion coefficient with excellent optical qualities and exceptional transmittance in the deep ultraviolet. ArF Grade was developed for 193 nm lithography systems.
In order to satisfy the challenging quality requirements of our customers in leading edge applications such as microlithography, The mfnaufacturer s dedicated to continuous improvement. Our investments in research and develop- ment, combined with Usa quality systems, support our technology leadership position and ensure that we meet our customer's requirements on time, every time.

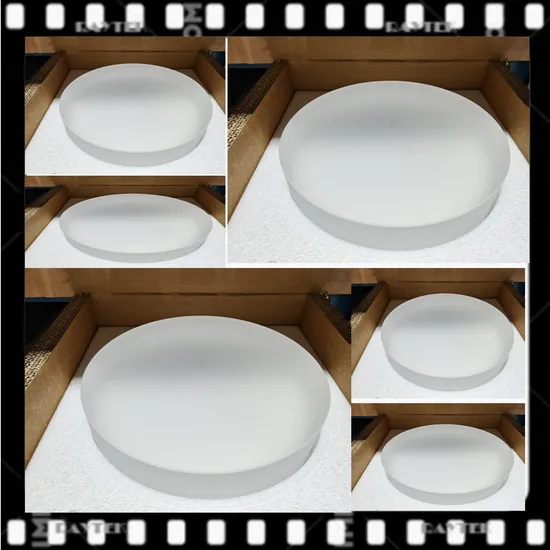

Ultra pure fused silica glass material HPFS /Synthetic Fused Silica
Materials were first developed by Usa company, then gradually used in commercial field. the manufacturer has made a comparison between Schott's and Russia's corresponding materials. The manufacturer's products have obvious advantages in uniformity and consistency. The most important thing is that the Synthetic Fused Silica products have very small and stable material stress in the case of similar optical and mechanical properties.
Products Name: Synthetic Fused Silica ArF Grade,Krf Grade, 0F, 0C,0A,0AA, 1PPM, 0.5PPM, 2PPM
Optical and Thermal Properties:

Softening Point	1585 ºC (107.6 poises)
Annealing Point	1042 ºC (1013 poises)
Strain Point	893 ºC (1014.5 poises)
Thermal Conductivity	1.30 W/m K
Thermal Diffusivity	0.0075 cm2/s
Average C.T.E.	0.52 ppm/K 5 ºC-35 ºC 0.57 ppm/K 0 ºC-200 ºC 0.48 ppm/K -100 ºC-200 ºC

Mechanical Properties:

Elastic (Young's) Modulus	72.7 GPa
Shear Modulus	31.4 GPa
Average Modulus of Rupture, abraded	52.4 MPa
Bulk Modulus	35.4 GPa
Poisson's Ratio	0.16
Density	2.201 g/cm3
Knoop Hardness (100 g load)	522 kg/mm2

Chemical Durability:

Solution		Time	Weight Loss [mg/cm2]
5% HCL by weight	@95 ºC	24 h	< 0.010
5% NaOH	@95 ºC	6 h	0.453
0.02N NA2CO3	@95 ºC	6 h	0.065
0.02N H2SO4	@95 ºC	24 h	< 0.010
Deionized H2O	@95 ºC	24 h	0.015
10% HF by weight	@25 ºC	20 m	0.230
10% NH4F*HF by weight	@25 ºC	20 m	0.220

Main Applying Fields:

Applying Fields:	Application of microlithography Lithography lens, Photomask substrate Deep ultraviolet laser element Optical standard parts Excimer laser optics Lithographic optics Beam transmission element Light guide Laser fusion Application of various aerospace technologies
*****

Matching Custom Manufacturing Serivce:
Including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
Matching processing equipments;
1).Single side lapping and polishing machines
2).Duble sided polishing machines
3).Ring throwing machines
4).DMG five-axis five-linkage spherical milling machine
5).DMG ultrasonic machining center
6).Super large scale gantry cnc machining center (2.0*2.0m)
7).Super large scale surface grinder (1.6m*1.6m)
8).CNC cutting machines
9).Thin plate cleaning machines
10).Ultrasonic trough cleaning machines
11).Plane interferometers
12).Two dimensional detectors
13).Ion beam polishing machines
14).Magnetorheological polishing equipments
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy--return, replace & refund policy.
For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.

---
