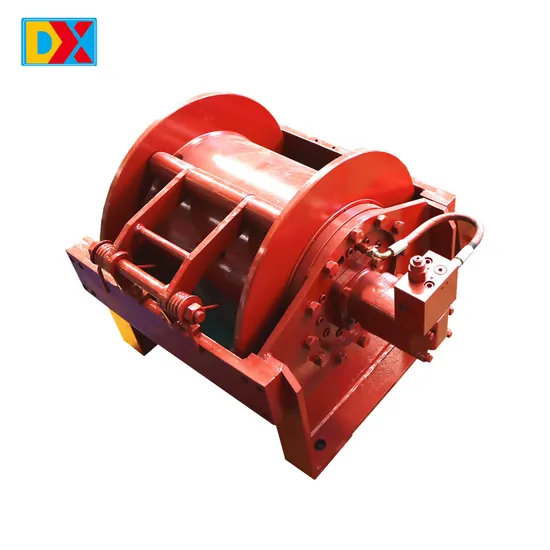

Small Hydraulic Winches Sell Well Drilling Rig Winches Lifting Small Winche

US$500.00
2-9 Pieces
US$400.00
10+ Pieces

Basic Info.

Model NO.
DJ10
Type
Construction Winch
Driven Type
Hydraulic
Speed
Fast
Carrying Capacity
Middle-Level
Tonnage
3T
Reel Number
1
Running Mode
Moving
Feature
Antiseptic, Insulating, Explosion-Proof
Certification
CE, ISO 9001
Standard
National Standards
Max. Output Torque
12485
Transport Package
Damage-Free Packaging
Trademark
DX
Origin
Shandong, China
Production Capacity
5000piece/Year

Product Description

The hydraulic winches produced by our company can be customized according to your needs, including the towing tonnage, the size of the output end, and the size of the externally connected hydraulic motor.Our products have been applied to various work vehicles, especially wreckers and aerial work platforms.Our company has a complete production line. Every step, from assembly to testing, is overseen by specialized technicians. Moreover, our engineers can also create drawings for customized products according to your requirements.

Our company chooses non - destructive packaging to ensure, as much as possible, that the products reach our customers intact.
Here are the products we already have.

Model
Max.Output torque(N. m)
 Max. Line pull (kN)
 Max. Line speed(m/ min)
 Brake torque
(N. m)
 Hydraulicmotor
 Max. rope length
(m/d)
 Weight
(kg)
1st layer
 2nd 1ayer
 3rd layer
 1st layer
 2nd 1ayer
 3rd
layer
DJ010D
 1500
 11.80
 11.10
 10.50
 74
 78
 83
 900
 BM-160
 300/8
 95
DJ3D
 4300
 33.00
 30
 28
 17
 18.7
 20.4
 460
 R2K-195
 110/13
 85
DJ10A8
 10584
 98.00
 85.5
 75.6
 7.4
 8.5
 9.6
 720
 BMER2-250
 30/16
 120
DJ12
 12485
 120.00
 104
 91
 6
 6.9
 7.8
 430
 OMS-250
 75/18
 270
DJ15
 17050
 147.00
 125
 110
 8
 9.4
 10.6
 560
 BMS-315
 56/22
 285
DJ20
 23130
 196.00
 165
 142
 5.6
 6.7
 7.6
 760
 BMT-390
 45/26
 285
DJ24
 35000
 160.00
 140
 120
 4
 4.5
 5
 1200
 OTM395/245
 50/24
 430
DJ25
 37975
 245.00
 209
 181
 6.2
 7.4
 8.4
 800
 OMT-310
 55/30
 420


.
