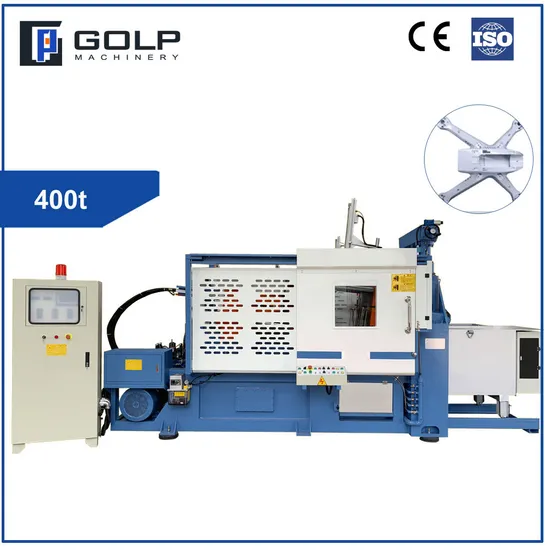

Brass Aluminum Metal Injection Hot Chamber Die Cast Casting Machine for Trophy Badge Making

Product Description

ΔNozzle,nozzle body and gooseneck are heated by electricity.The temperature can be held stable to avoid the defective products;
ΔAdopt high quality hydraulic valves ensure hydraulic system stability and excellent performance;
ΔHydraulic drive gear type mould height adjustment with convenient operation and accurate adjustment;
ΔGood quality electronic burner,burning fully without pollution.Stable performance and high safety
ΔAdopts automatic concentrated lubrication system to improve machine service life and decreases repair times.
ΔAdopts precise artificial intelligent computer control system,which is convenient for operation and maintenance.
ΔDelta computer control system with stable and fast performance,high precision control and easy to operate.
ΔThe system is equipped with self diagnosing function and failure alarm function for removal problems.

ITEM	Unit	DC25T(A)	DC25T(B)	DC38T	DC50T	DC68T	DC88T
Clamping Force	KN	250	250	380	500	680	880
Clamping Stroke	mm	125	150	160	200	230	250
Ejection Force	KN	13	23	44	50	50	65
Ejection Stroke	mm	40	50	50	60	60	60
Die Thickness(Min-Max)	mm	150-220	100-300	110-270	120-330	120-330	150-350
Platen Size(HxV)	mm	390*368	395*417	450*420	500*480	540*490	530*577
Space Between Tie Bars (W*H)	mm	278*232	260*260	295*295	335*285	335*335	357*357
Tie Bar Diameter	mm	40	45	50	55	55	63
Injection Position	mm	0	0	0	0	0	0/-60
Injection Stroke	mm	84	100	105	105	105	130
Traverse Stroke	mm	130	140	180	190	190	190
Injection force	KN	27	31	63	65	65	67
Diameter of Plunger	mm	38	40	36/40/45	40/45/50	45/50/55	45/50/55
Max Casting Force	Bar	238	246	620/500/396	517/409/331	517/409/331	420/340/282
Shot Weight	Kg	0.6	0.8	0.7/0.85/1	0.85/1/1.3	1/1.26/1.55	1.1/1.3/1.6
Max Projecting Area	cm²	63	81	45/56/70	73/93/115	97/122/151	209/258/312
System Pressure	Mpa	7	8	10	10	10	10.5
Motor Power	KW	5.5	7.5	7.5	7.5	7.5	11
Crucible Capacity	Kg	160	250	250	325	325	55
Oil Consumption	Kg/h	1.8	2.5	3.5	3.8	3.8	4
Oil Tank Capacity	L	150	150	200	200	200	230
Machine Weight	Ton	2.1	2.4	2.6	3.3	3.4	3.6
Machine Dimension	cm	270*100*160	270*130*180	300*140*180	355*145*200	355*145*200	385*150*200

ITEM	Unit	DC100T	DC130T	DC160T	DC200T	DC280T	DC400T
Clamping Force	KN	1000	1300	1600	2000	2800	4000
Clamping Stroke	mm	335	350	350	400	460	520
Ejection Force	KN	89	89	89	110	180	180
Ejection Stroke	mm	85	85	85	100	100	125
Die Thickness(Min-Max)	mm	150-450	170-450	205-505	250-550	250-600	300-700
Platen Size(HxV)	mm	610*610	614*706	672*726	740*820	860*870	980*980
Space Between Tie Bars (W*H)	mm	409*409	409*409	460*460	510*510	560*560	630*630
Tie Bar Diameter	mm	70	75	80	90	110	130
Injection Position	mm	0/-80	0/-80	0/-80	0/-100	0/-125	0/-125
Injection Stroke	mm	130	150	150	175	200	230
Traverse Stroke	mm	190	200	200	200	200	340
Injection force	KN	89	108	108	132	158	182
Diameter of Plunger	mm	45/50/55	55/60/65	60/65/70	60/65/70	70/75/80	70/80/90
Max Casting Force	Bar	560/453/374	455/382/326	382/330/286	467/397/343	410/357/314	420/340/282
Shot Weight	Kg	1.2/1.4/1.6	2.3/2.7/3.2	2.7/3.2/3.7	3.2/3.7/4.3	5/5.7/6.5	4.4/5.7/7.2
Max Projecting Area	cm²	178/220/267	285/340/398	420/485/560	428/503/583	683/784/888	829/1084/1369
System Pressure	Mpa	14	14	14	14	14	14
Motor Power	KW	15	15	15	15	22	22
Crucible Capacity	Kg	360	360	360	360	720	1350
Oil Consumption	Kg/h	4.8	4.8	4.8	4.8	6.3	11.2
Oil Tank Capacity	L	280	300	300	300	500	800
Machine Weight	Ton	5.8	6	6.5	7	11	18
Machine Dimension	cm	440*160*205	445*160*210	450*160*220	550*165*220	560*170*230	690*246*294

You can click on the image above for details.
WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
