Industrial Food Blender Candy Powder and Liquid Fertilizer Mixer Gypsum Mixing Equipment

Product Description

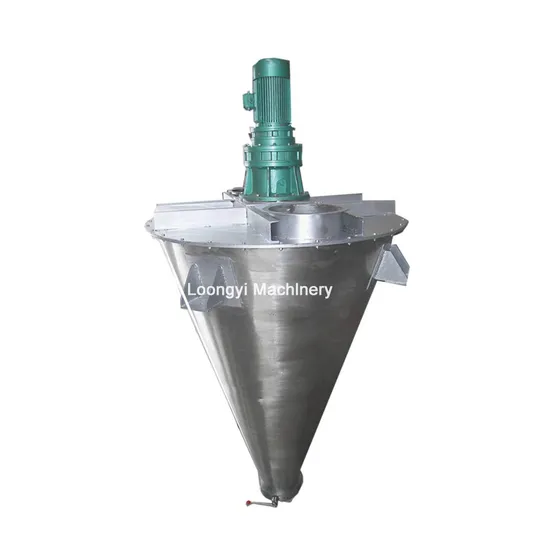

Product Description WH Series Double Spiral Mixer
Product Introduction:Double auger shaped mixer is the introduction of the experience in advanced technology abroad,with powder, grain and liquid mixing effect. Spiral material change into material flow by self-rotationwith high speed. It is widely used for chemical industry, pharmaceutical, pesticide, compound fertilizer,dye, pigment, rubber, building material, food, feed, additive, fine chemical industry, mine, non-metal, ceramics, fireproofing, powder etc., solid-solid, powder-liquid mixing.
Main Features:The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws. The effected motions include: The revolution of the screw along the wall making the material conduct a circumferential motion; The rotation of the screw making the material rise along the screw from the cone bottom; The compound motion of the rotation and revolution of the screws making partial, material be absorbed into the screw cylindroid meanwhile, under the action of centrifugal force, the partial material in the screw cylindroid discharges radially. The raised material drops under its sole weight. The four kinds of motions effect convection, shearing, diffusion in the cone, thus quick and even mixing can be achieved. Product Parameters
Technical Data:

Model	WH-0.05	WH-0.2	WH-0.5	WH-1	WH-2	WH-4	WH-5	WH-6	WH-8	WH-10
Whole volume (m3)	0.05	0.2	0.5	1	2	4	5	6	8	10
Capacity(kg/ batch)		95	190	380	720	1400	2400	2880	3840	4800
Loading	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Material particle(mm)	20-250	20-250	20-250	20-250	20-250	20-250	20-250	20-250	20-250	20-250
Power(kw)	1.5	22	3	4	5.5	11	15	18.5	18.5	22
Mixing time(Min)	6-10	6-10	6-10	8-10	8-10	8-10	8-10	8-10	8-10	8-10
Overall Size(mm)	610 × 1450	890 × 1850	1160 × 2250	1450 × 2700	1850 × 3450	2260 × 4210	2578 × 4566	2710 × 4782	2950 × 5392	3168 × 5735
Weight(kg)	200	600	800	1200	1800	2500	3400	3550	3700	3950

Detailed Photos Product Pictures:

Company Profile
With more than 20 years of manufacturing experience, Jiangyin Loongyi Machinery Co.,ltd specialized in manufacturing powder
grinding machine, mixing machine, sifting machine, granulator machine, packing machine, drying machine, conveying machine,
slicing machine, cleaning machine and so on, which are widely used in foodstuff, chemical, pharmaceutical and other industries,etc.
Since its foundation, Loongyi has always adhered with the principle of quality firstly and technology is life. The company owns more
than 50 employees, about 1000m2 of office space, cover about 9000m2 of manufacturing space. With customer concentric idea as
base, it takes every detail seriously in the process of production to assure high performance and quality of each part and equipment
as well as the stable operation in more than 80 countries around the world. Our products have been exported to such countries and
regions as USA,Canada, Europe, Japan, Australia,Africa,South Asia,middle Asia. We also welcome OEM and ODM models.
Our products are approved by CE and ISO.
Loongyi Machinery locates in No. 236 Yungu Road, Zhutang town, Jiangyin City, Wuxi City, Jiangsu Province, China. It takes about
20 minutes to take the high-speed train from Shanghai to our city; It takes about 40 minutes to drive from the high speed railway station to our factory. There is airplane in our city, so transportation is very convenient.
Over these years, our company has made elaborate design and improvement,on the basis of absorbing features and advantages of
similar products both at home and abroad.
The products have won good reputation and praises among all customers, from at home and abroad,too.

---
