Product Details
Product Description
Product Description

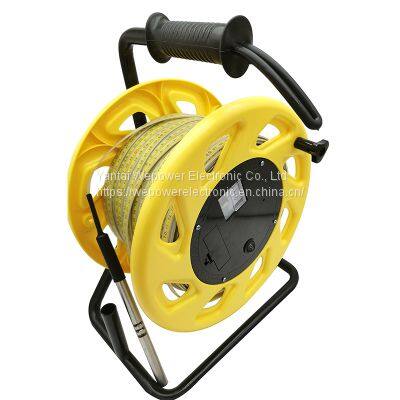

Borewell water level indicator is portable instruments that accurately measure water levels in wells , boreholes and standpipes . This water level sensor for borewells detect water levels with a (14mm*220mm) stainless steel probe attached to a polyethylene tape marked to mm.
In order to make long life for borewell water level sensor , the correct maintenance and storage are required ,please follow the tips below :
1)Please turn off the power switch after measuring to save battery power .
2)Replace new battery, the ruler tape from the winding drive should be winded all down, twist off the front panel of the two self-tapping screws and remove the front panel.
3)After level measuring , probe and cable tape must be wipe clean, and the cable ruler should neatly wound on the winding drive.
4)Tape should not be bent, especially near the end portion of probe, to avoid damage and breakage.
5)The probe should be gently and avoid severe vibration
6) Should be stored at a temperature of -10℃ to +40℃, dry and ventilated room.
● Precision measurement, simplicity, durability
● Polycarbonate sturdy stainless steel ruler
● Water and dust-proof encapsulated electronics
● Full depth stainless steel probe
● Tape marked in 1 foot and 0.01 foot intervals
● Self-contained power supply using a standard, small 9V battery
● Audio alert beeper and LED indicate contact with the water
Product Name
| Borewell water level indicator
|
Measure Range (m)
| 30-500m
|
Minimum Indication(mm)
| 1 mm
|
Repeat Indication (mm)
| ±2.0
|
Power Supply(V)
| 9V Lithium Battery
|
Probe Dimension
| 14*220mm
|
Material
| ● ABS Reel and handle ,Metal frame (Range less than 350m )
● Metal reel , Metal Handle , Metal Frame (Range≥ 400m )
● Metal reel , metal handle ,Metal Frame ,with wheel trolley (Range=500m)
|
Cable Material *Size
| Steel ruler with PE Coating ; Width: 12mm * Thickness 2mm
|
Ambient Temperature
| -20~65°C, relative humidity ≤90%, no condensed water, no strong magnetic field interference
|
Indication Way
| Indicator Light, Buzzer
|
Product Size
| Length 36cm * Width 26cm * Height 44cm
|
Weight
| 5KGS (50m )/ 10KGS(300m) /23KGS(500m)
|
Our good quality borewell water level indicator ,fast shipping , considerate service always get nice feedback from our customers all over the world , please see the details.
>>
