High Quality Water Tank Wire Drawing Machine -Songwei

Product Description

Product Description

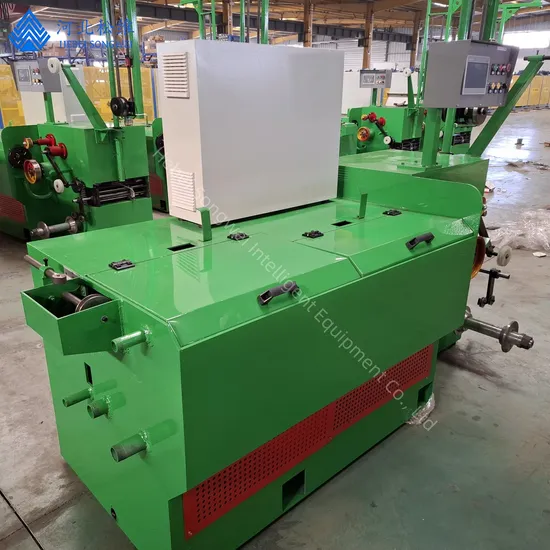

Wet wire drawing machine for producing fine stainless steel wire
The water tank type wire drawing machine is a small continuous production equipment composed of multiple wire drawing heads. By gradually pulling, place the pulling head into the water tank, and finally pull the steel wire to the desired specifications. The entire drawing process is completely controlled by the mechanical speed difference between the main shaft of the drawing machine and the lower shaft of the drawing machine.
Its biggest advantage is the use of a small spool wire take-up machine (the size of the spool can be customized according to customer requirements). It can meet more production needs of customers, and the machine can also be equipped with a separate trunk wire take up machine (Coiler).
0.05mm-0.23mm stainless steel wire drawing machine

Mechanical Specifications

Stainless steel wire wet drawing machine
Inlet wire diameter	0.55-1.0(mm)
Outlet wire diameter	0.05-0.23(mm)
Max speed	600(m/min)
Max number of drawing dies	21
Tower wheel	Alloy
Max capstan dia	200(mm)
Main motor	7.5(kw)
Wire Take-up motor	1.5(kw)
Dynamic control	Frequency conversion control
Pay-off method	Over-head
Traversing method	Stepper Motor
Cooling method	Immersion
Braking method	Electromagnetic brake
Voltage	220V/380V/415V/440V/(customized)
Take-up spool dia	100mm/150mm/(customized)
Size	2350x980x1015(mm)
Weight	1480(kg)

Detailed Photos
Protective cover.
The running parts of the machinery are equipped with protective covers, and customers can also customize the color of the machinery.
Vulnerable parts.
All vulnerable parts use well-known Chinese brands to ensure quality, and most of the accessories are independently designed and produced by our company.
Tensioning device.
The tensioning device can effectively adjust the tightness of the wire and is equipped with a sensing device that can stop the machine in an emergency in the event of a mechanical failure to ensure smooth flow of the wire.
Tower wheel.
The machine adopts 4 tower wheel structure, and the tower wheel is made of alloy material, which can place up to 20 wire drawing dies.
Water collection device.
When the machine runs fast, the wire will bring out the soapy water in the water tank. The device can collect the soapy water through the pipe to keep the workshop clean.
Motor.
The machinery is equipped with high-quality motors with a power of 7.5kw, which can ensure long-term high-speed operation of the machinery.
Wire take-up method.
This machine takes up the wire through a small spool (we can produce spools of different sizes), and we can also equip the equipment with both a trunk wire take-up machine (coiler) and a spool wire take-up machine (spooler).
Control system.
The control system also includes an emergency stop button in front of the machine, The screen is in both Chinese and English, making it convenient for customers to use.
Electric box.
The main electrical appliances in the electric box are frequency converter and main power supply. The connection line is simple and easy to understand.
Traverse unit.
The traverse unit we design and produce can make the wire spool neat and beautiful, and the speed is fast.
Packaging & Shipping
Package.The main machinery is packed with plastic film and fixed in the container with steel wire. Small mechanical parts are packed in wooden cases.Shipment.We can book containers for customers according to the mechanical size. If we need LCL, we can arrange to pack and send them to the designated place.
Customer and Market
Friends from all over the world. All key spare parts of the company are independently produced by us to control their processing accuracy and quality, thereby extending the service life of the machinery.The company has taken the lead in passing the ISO9001:2008 quality system certification and the EU CE product safety certification in the same industry, providing reliable assurance for excellent product quality.
The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment. Company Profile
Factory History
Hebei Songwei Intelligent Equipment Co., Ltd. was established in 2002 and is located in Hebei Province, China. It is a high-tech enterprise specializing in the design and manufacturing of metal wire drawing equipment, galvanizing equipment, and their auxiliary equipment. It enjoys a high reputation in the metal wire drawing and processing industry.
Factory Strength
The company currently has 3 production and processing factories, with 8 workshops including metal cutting, precision machining, equipment assembly, and electrical assembly, with a total area of approximately 30000 square meters. The company has advanced processing equipment such as plasma welding, shearing machines, and CNC lathes.
Development Goals
Hebei Songwei Intelligent Equipment Co., Ltd. is committed to international development and participates in at least four international exhibitions each year, taking this opportunity to showcase the company's advanced technology and products to the world and deepen exchanges and cooperation with global partners. FAQ
Q: Are you a manufacturer or a trading company?
A: We are manufacturers. We have a group of high-quality engineers and experts who have been engaged in the field of wire processing equipment.
Q: What are your company's main products?
A: We specialize in the research and manufacturing of machinery such as wire drawing machines, galvanizing lines, annealing industrial furnaces, and nail making machines.
Q: What can we provide to customers?
A: Our professional production and technical personnel can train our customers' employees to ensure their smooth production. And we will provide after-sales service to our customers.
Q: How long is the warranty period for the machine?
A: Warranty period of one year (from the date of completion of mechanical debugging in the buyer's factory).
Q:What machinery does your company mainly produce?
A:Our main products include straight line wire drawing machine, pulley wire drawing machine, water tank wire drawing machine, galvanized wire production lines, annealing furnaces, Welding wire copper plating production line, Welding rod production line, nail making and coils nails machines, etc.
Q: Why did I choose your company?
A: We have over 10 years of professional experience in the production of cable machinery, High security products.
We have a team of experienced technical workers and engineers.
We can support overseas training of engineers.
We can customize designs and accept customer sample designs.
We can provide after-sales service to customers.
Note:
Please provide following information if you want the directly quotation:
1. Wire Material:
2. Inlet Wire Diameter range:
3. Outlet wire Diameter range:
4. Where and what does the wire use for:

---
