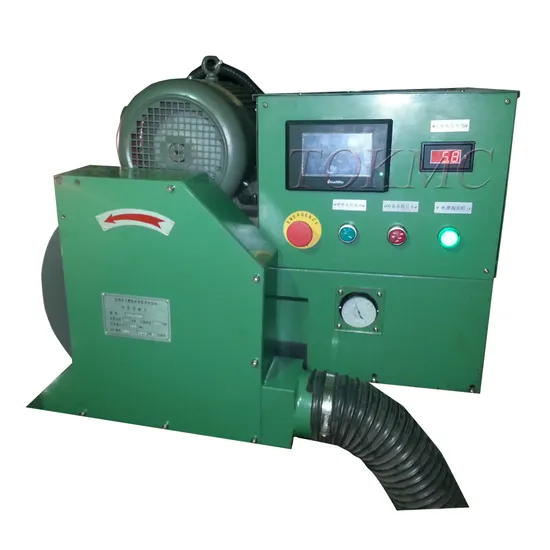

PLC Crowning Grinding Attachment (grinder for lathe rubber roller)

Product Description

Grinder for universal Lathe Application :
This grinding head is an attachment to horizontal manual lathe. It adopts numerical control for profile curve grinding to obtain crowning curves, and symmetric on the middle point, which is ideal profile for rubber roller profile crowning.
Material of roll includes rubber, PU, silicon resin, plastic, and fibre roller. It is widely used for papermaking, printing, textile industries, etc.
On any horizontal lathe, it can be installed directly with adapter we supply.
it is easy to use:
1) select type of curve
2) input length to cut
3) input height of crown
4) input speed of lathe feed rate (spindle speed rpm x carriage feed rate mm/r)
5) Start
Grinding wheel size Φ250/350/500 available for your choice -- see attached brochure.
Feature :
This machine adopts numerical control for profile curve grinding to obtain
crowning curves, and symmetric on the middle point, which is ideal profile for
rubber roller profile crowning.
l A few types of profiles can be done as follows.
1. Sine curve crowning grinding, suitable for grinding soft material rubber roller
(Hardness Shore A < 65°)
2. Circle arc crowning grinding, suitable for grinding middle hardness rubber roller
(Hardness Shore A about 75°)
3. Parabolic curve crowning grinding, suitable for grinding harder rubber roller
(Hardness Shore A about 85°)
4. Hardest curve crowning grinding, suitable for grinding hardest rubber roller
(Hardness Shore A > 90°)
5. Concave crowning grinding
6. Tapers (conic) grinding
7. Cylindrical surface grinding
l The material of roller:
Rubber, PU, silicon resin, plastic, metal, and fibre roller
l Lathe applicable:
On any horizontal lathe, it can be installed without adaptor directly.

Specification	TOK250	TOK300	TOK350	TOK500
Grinding type	Convex crown Concave crown Taper ends Cylinder
Crown height mm	0.01-8	0.01-8	0.01-8	0.01-8
Spindle type	Bearing	Bearing	Bearing	Bearing
Spindle diameter mm	35	35	50	70
Spindle speed rpm	2145	1780	1528	1070
Wheel linear velocity m/s	28	28	28	28
Motor power kw	2.2	4	5.5	7.5
Wheel size	250x32x75	300x40x75	350x40x127	500x50x203
Weight kg	140	200	270	430
Size LxWxH mm	630x450x455	650x525x550	710x600x619	770x740x683

---
